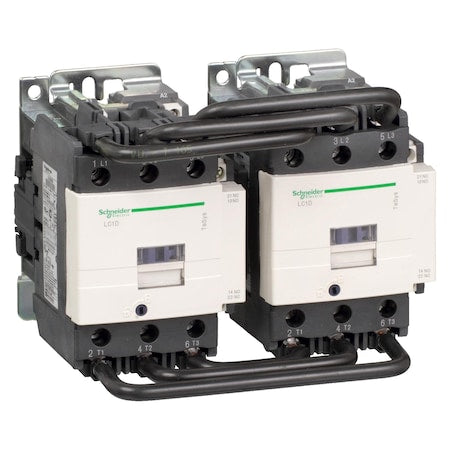

Schneider Electric LC2D80G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Reversing, Screw Clamp

The TeSys Deca LC2D IEC Magnetic Contactor is a 3-pole, reversing contactor with a 120 V AC coil. It uses a 1NC/1NO auxiliary contact configuration and screw clamp terminals for control and power connections. Preassembled with a reversing power busbar, it is rated for operation with motor control and resistive loads and can be mounted on plate or rail. The unit weighs 3.2 kg and has front-face IP20 protection.

Key features:

• - Poles: 3P; Action: Reversing; Auxiliary Contacts: 1NC/1NO
• - Coil Voltage: 120 V AC; Terminals: Screw Clamp
• - Mounting: Plate, Rail; Protective cover included
• - Series/Product: LC2D / TeSys Deca; Weight: 3.2 kg; Dimensions: 127 mm H × 182 mm W × 158 mm D
• - Inrush/Hold VA: 245 VA / 26 VA
• - Rated Making Capacity: 140 A (AC Signalling); 250 A (DC Signalling); 1100 A (Power Circuit)
• - Rated Operational Current: 125 A (AC-1); 80 A (AC-3 / AC-3e); 55 A (AC-4)
• - Rated Insulation Voltage: Power circuit up to 600 V (CSA/UL); Signalling circuit up to 690 V (IEC 60947-1)
• - Impedance: 0.8 mΩ; Impulse Withstand: 8 kV
• - Includes protective cover; Preassembled with reversing power busbar
