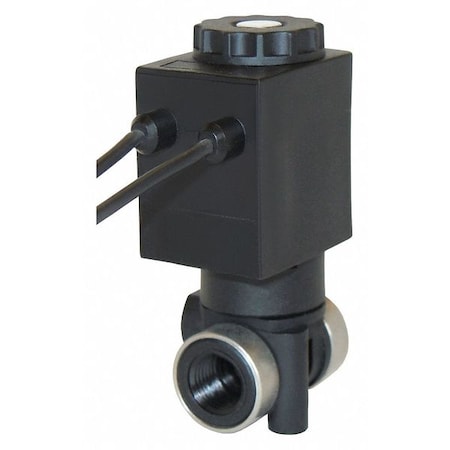

Spartan Scientific 3827-E60-AA82B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 12 VDC, Direct Acting, EPDM

The SPARTAN SCIENTIFIC 3827-E60-AA82B is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It uses an energized coil to move a plunger that opens or closes the flow path, enabling automated control of air, light oil, and water within a 0 to 200 psi differential. The valve features a glass-filled nylon body and is intended for general purpose use per the product specifications with an inlet and outlet connection type of NPT and a nominal pipe size of 1/8 inch. It operates at 12 VDC with a 6.5 W coil and wire leads for electrical connection. The valve is rated for outdoor use with a NEMA 4 enclosure and an IP65 rating, providing protection against dust and water ingress.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Body Material: Glass Filled Nylon
• - Seal Material: EPDM
• - Orifice Diameter: 5/64 inch
• - Operating Pressure Differential: 0 to 200 psi for air, light oil, and water
• - Fluid Temperature Maximum: 194°F
• - Ambient Temperature Range: 50 to 122°F
• - Coil Enclosure: Watertight, Dust Tight
• - Coil Insulation Class: F
• - Electrical Connections: Wire Leads
• - Includes Coil and Seal
• - Overall Dimensions: Length 1-3/32 in, Width 1-3/32 in, Height 2-13/32 in
• - Voltage and Wattage: 12 VDC at 6.5 W
• - Environmental Rating: Outdoor
• - Standards: CE Certified
