• Speedaire 30E603 - Swivel Connector,1/4 (M)NPT x 3/8 Barb
1 1

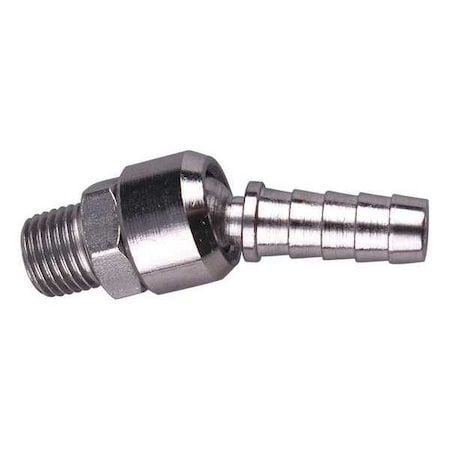

Speedaire 30E603 - Swivel Connector,1/4 (M)NPT x 3/8 Barb

Speedaire 30E603 - Swivel Connector,1/4 (M)NPT x 3/8 Barb

Brand: Speedaire SKU: 30E603
$6.20 USD
$6.20 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SPEEDAIRE - 30E603 is a swivel connector designed as a quick-connect fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. Designed to provide a 360-degree swivel joint that reduces relative rotation between the hose/tool and the fixed coupling. Includes an NBR sealing element; rated for a maximum working pressure of 150 psi at 70°F. Compatible with pneumatic tools and pneumatic tubing lines that use an 1/4 in male NPT inlet and a 3/8 in hose barb outlet.

Key Features:

  • - Connection type: (M)NPT x Hose Barb with 1/4 in NPT inlet and 3/8 in hose barb outlet size.
  • - Material: Steel construction with chrome-plated finish for surface treatment.
  • - Seal material: NBR (Nitrile) used for sealing elements.
  • - Maximum working pressure: 150 psi at 70°F.
  • - Operating temperature range: -20°F to 150°F.
  • - Swivel angle of 360 degrees with one pivot point and a 25-degree pivot angle, utilizing a ball-joint swivel type.
  • - Overall length of 2.39 in.
  • - Does not include pre-applied thread sealant.
🏢
