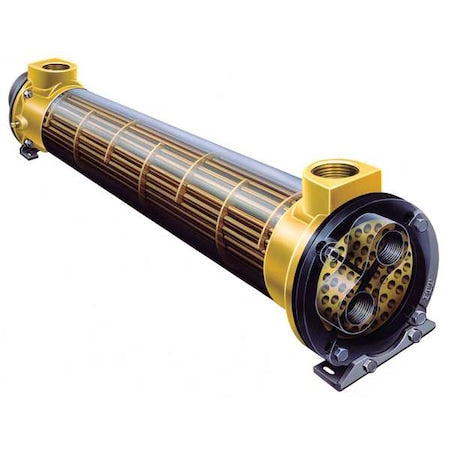

The Standard Xchange SN516003024006 Heat Exchanger is available from National Boiler Supply. We support purchasing teams with fast dispatch, formal quotes, and a live order desk at 850-565-3492.
Product Overview
Heat Exchanger, Heat Dissipation Capacity for Water 330,000 BtuH, Heat Dissipation Capacity for Oil 56,000 BtuH, Total Surface Area 7.3 sq ft, Shell Outside Diameter 3 1/8 in, Tube Length 27 1/8 in, Shell Material Stainless Steel, Tube Material Stainless Steel, Number of Passes 4, Shell Maximum Pressure Rating 225 psig, Shell Maximum Operating Temperature 450 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 450 Degrees F.
Technical Specifications
| Brand | Standard Xchange |
|---|---|
| Manufacturer Part Number | SN516003024006 |
| Heat Dissipation Capacity for Water | 330,000 BtuH |
| Heat Dissipation Capacity for Oil | 56,000 BtuH |
| Total Surface Area | 7.3 sq ft |
| Shell Outside Diameter | 3 1/8 in |
| Tube Length | 27 1/8 in |
| Shell Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Number of Passes | 4 |
| Shell Maximum Pressure Rating | 225 psig |
| Shell Maximum Operating Temperature | 450 Degrees F |
| Tube Maximum Pressure Rating | 150 psig |
| Tube Maximum Operating Temperature | 450 Degrees F |
OEM Part Verification: Confirm Standard Xchange part number SN516003024006 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
