Taco 0010 Circulator Pump
Taco 0010 Circulator Pump
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 0010-F3 (Cast Iron Housing Base) |
| Maximum Fluid Velocity Flow | Up to 32 GPM (Gallons Per Minute) structural flow profile |
| Maximum Head Dynamic Lift | 11.0 Feet of Total Head Delivery Capacity |
| Electrical Specifications | 115 Volts, 60Hz, Single Phase, 1.10 Amps, 126 Watts Motor Power Draw |
| Pipeline Flange Layout | 2-Bolt Universal Flange Pattern (Accommodates 3/4" to 1-1/2" flange connections) |
| Operational Fluid Constraints | 230°F (110°C) Liquid Limit capped at 150 PSI maximum pressure environment |
Couldn't load pickup availability

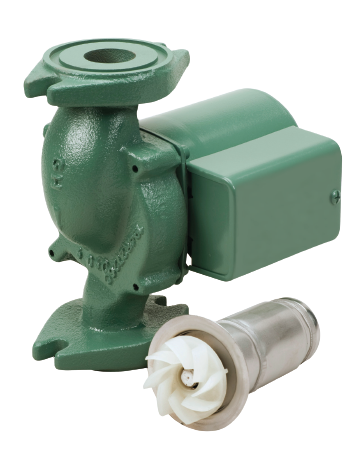

The Taco 0010-F3 is a high-velocity, medium-head inline hydronic circulator pump engineered for a wide range of residential and light commercial closed-loop heating applications. Optimized to handle high-friction fluid zones, this pump easily conquers the flow resistance common in extensive radiant tubing grids, high-capacity zone zones, and indirect domestic water heater coils.
Core Architectural & Operational Advantages:
- Signature Self-Lubricated Cartridge: Contains all dynamic rotating elements—rotor, shaft, and ceramic sleeve bearings—within an isolated drop-in internal module. System water acts as a continuous self-lubricant, entirely eliminating manual oiling and reducing noise.
- Simplified Field Serviceability: Designed with a modular mechanical layout that enables technicians to swap the internal cartridge assembly by removing only four motor bolts, keeping the main cast-iron volute body piped securely into the infrastructure.
- Dependable High-Torque Motor Architecture: Powered by a premium permanent split capacitor (PSC) motor delivering massive initial rotational force, preventing sticking or binding even after extended seasonal summer shutdowns.
System Compatibility Note: The 0010-F3 model features a heavy-duty cast iron body intended purely for closed-loop hydronic heating systems where fresh oxygen ingestion is controlled. For open-loop or fresh domestic potable water lines, the bronze-bodied model (0010-BF3) must be specified.
