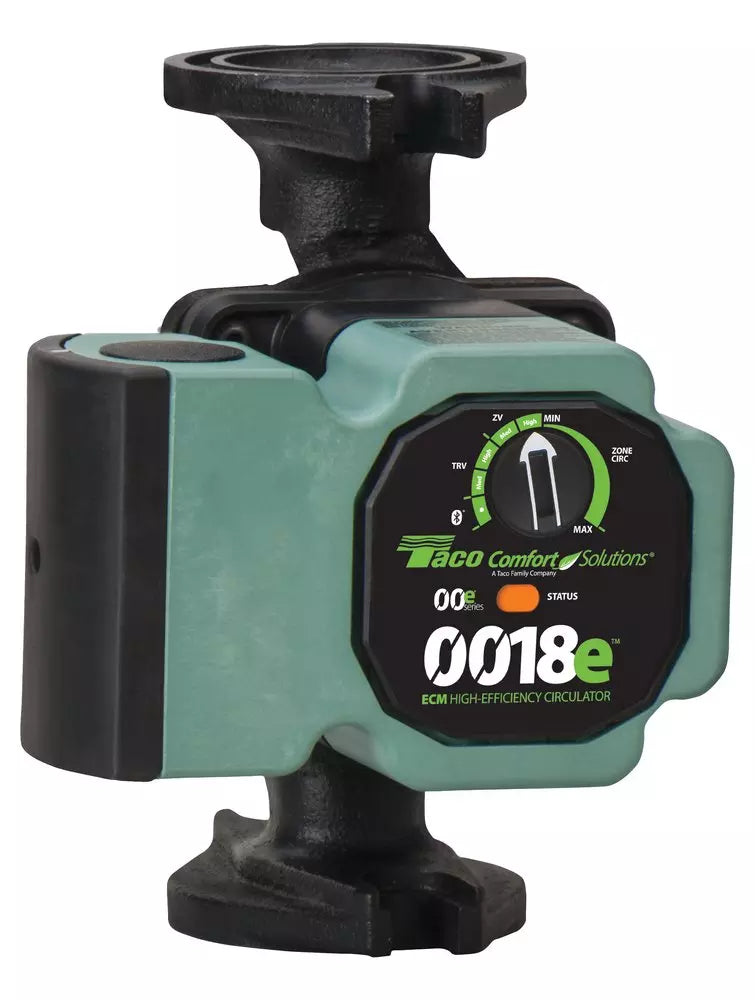

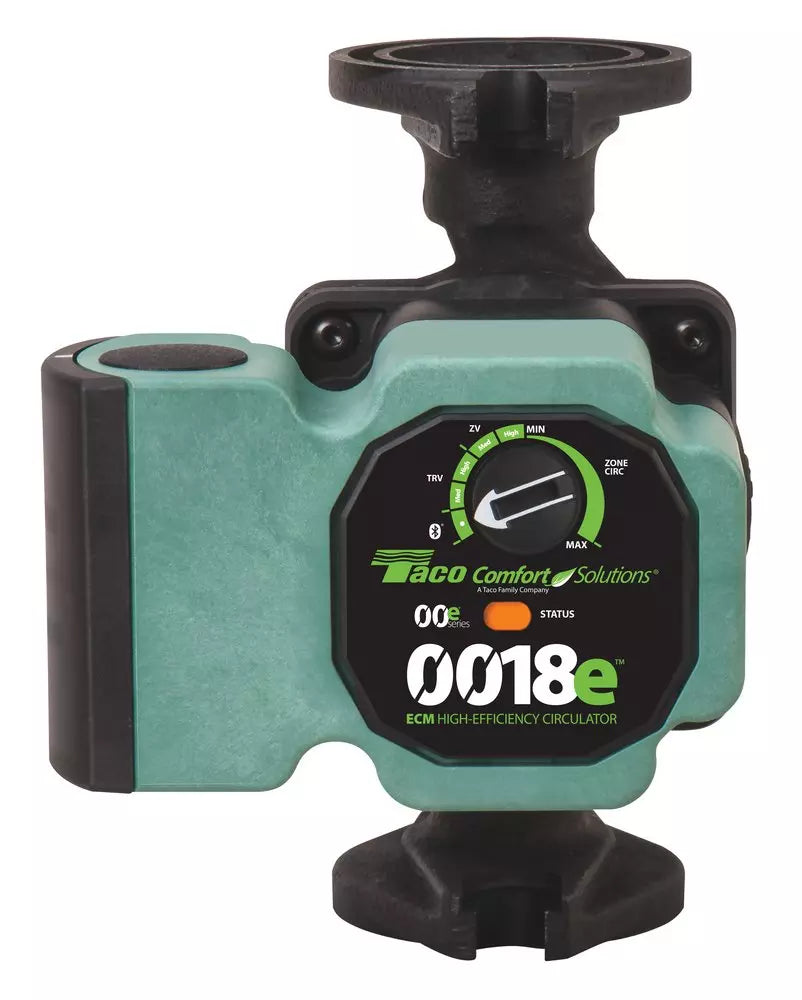

Taco 0018e ECM High-Efficiency Circulator CAST IRON Pump
Taco 0018e ECM High-Efficiency Circulator CAST IRON Pump
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 0018E-2F2 (Cast Iron Series) |
| Flange Interface Configuration | Standard 2-Bolt Universal Flange (Includes Nut-Grabber design) |
| Performance Envelope Maxima | 16.0 GPM Maximum Flow / 18.0 Feet Maximum Head Shut-off |
| Input Power Parameters | 120 Volts, 60 Hz, Single Phase (4W Minimum to 44W Maximum) |
| Maximum Current Draw | 0.54 Amps Max Load Rating |
| Maximum Static Casing Pressure | 125 PSI (8.6 bar Working Limit) |
| Fluid Temperature Bounds | 36°F to 230°F (2°C to 110°C) Continuous System Limits |
| Insulation Safety Class | Double Insulated Enclosure (No system ground wire required) |
The Taco Comfort Solutions 0018E-2F2 00e® Series Circulator Pump introduces next-generation smartphone-enabled control to residential and light commercial hydronic systems. Harnessing an advanced electronically commutated motor (ECM) paired with permanent magnet technology, this variable-speed wet-rotor circulator dynamically adjusts its output to match real-time system demands. By adapting seamlessly to zoning changes, it prevents noisy velocity whistling and eliminates system over-pumping while using up to 85% less electrical energy than standard permanent split capacitor pumps.
Advanced Smart Technology & Operational Modes:
- Bluetooth® App Integration: Features two-way wireless communication that links to the intuitive Taco 0018e Mobile App for iOS and Android. Contractors can configure control curves, view real-time performance metrics, check error history logs, and generate system validation reports right from a mobile device.
- Versatile 4-Mode Control Core: Operates across four distinct control behaviors—Infinitely Variable Fixed Speed, Constant Pressure, Proportional Pressure, or TacoAdapt™ self-adjusting auto-proportional logic that custom-tunes performance to the building's thermal habits.
- SureStart® Automatic Safeguards: Equipped with built-in electronic unblocking and automated air-purge routines that reliably clear trapped line air or system debris before startup, safeguarding the wet rotor against terminal dry-running damage.
System Application Envelope: Approved strictly for closed-loop hydronic heating, radiant floor manifolds, hydro-air fan coils, and indirect water heater loops. Outfitted with an Integral Flow Check (IFC) and engineered with a cast iron body containing a patented BIO Barrier® system to prevent magnetic sludge contamination.
