Taco 005 Circulator Pump
Taco 005 Circulator Pump
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 005-F2 (Cast Iron Flanged Casing) |
| Maximum Volumetric Flow | Up to 18 GPM (Gallons Per Minute) high-flow capacity |
| Maximum Total Dynamic Head | 9.0 Feet of Maximum System Dynamic Head Lift |
| Electrical Specifications | 115 Volts, 60Hz, Single Phase, 0.82 Amps, 77 Watts Motor Draw |
| Flange Connection Format | 2-Bolt Universal Flange Pattern (Fits standard 3/4" to 1-1/2" piping flanges) |
| Fluid Temperature Bounds | 230°F (110°C) Liquid Ceiling at 150 PSI Maximum Operating Pressure |
Couldn't load pickup availability

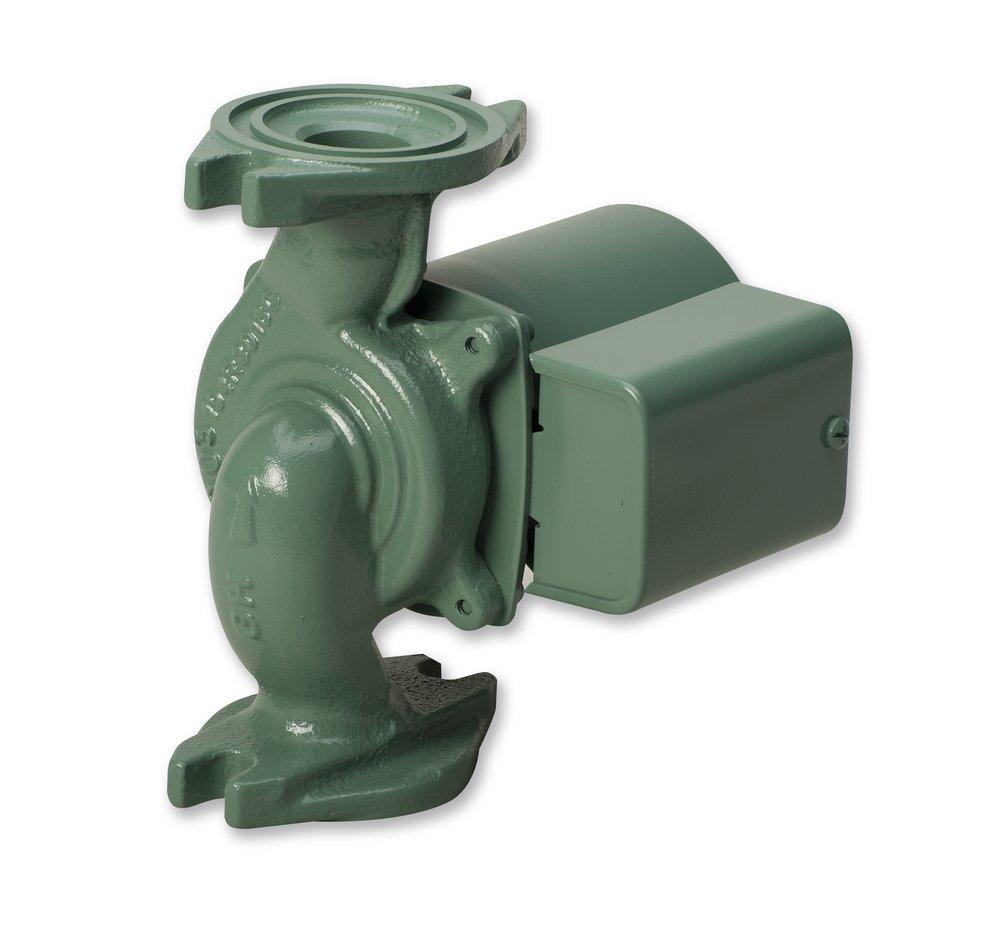

The Taco 005-F2 is a professional-grade, high-capacity inline hydronic circulator pump meticulously engineered for low-head, high-flow residential and light commercial zone heating systems. Optimized to shift high fluid volumes efficiently with minimal electrical overhead, this pump excels in high-flow radiant underfloor heating distributions, large-capacity baseboard zones, and indirect domestic water heating systems.
Core Features & Maintenance Advantages:
- Replaceable Self-Lubricated Cartridge: Houses all dynamic internal moving parts—including the rotor, shaft, and ceramic sleeve bearings—within an isolated drop-in internal module. System water continuously cools and self-lubricates the bearing interface, ensuring quiet, maintenance-free operation.
- Streamlined Mechanical Accessibility: Built for rapid technical service, the modular design enables mechanical cartridges to be swapped out by removing only four standard motor bolts, completely eliminating the need to cut pipe runs or unseat the cast iron housing.
- High-Torque Permanent Split Capacitor Motor: Outfitted with a premium PSC motor assembly that provides high starting torque to prevent seasonal binding or sticking after extended summer downtime.
System Application Directive: The standard cast iron 005-F2 design is strictly intended for closed mechanical hydronic loops where oxygen infiltration is controlled. For open-loop setups or potable domestic water mains, a matching bronze-bodied framework (005-BF2) must be specified to prevent oxidation.
