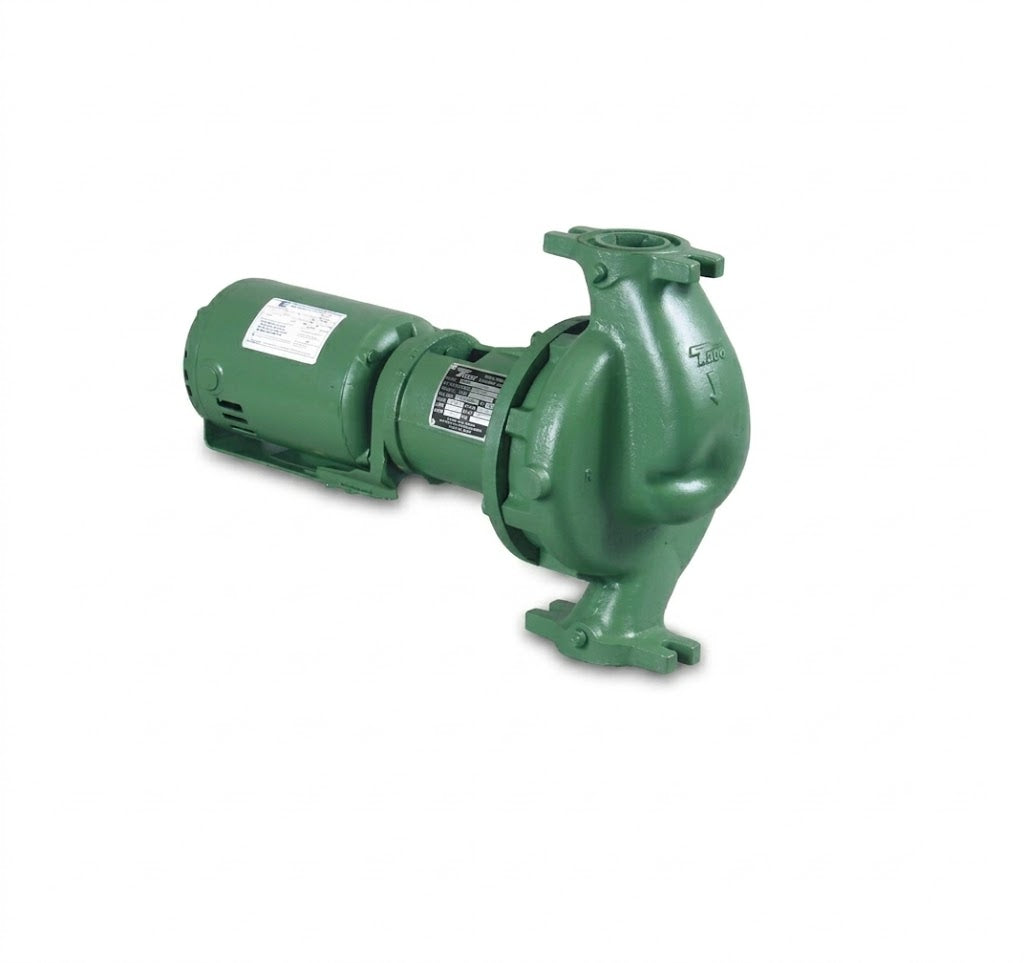

Taco 1610 Three-Phase Commercial Inline Pump
Taco 1610 Three-Phase Commercial Inline Pump
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Technical Specifications Matrix:
| Manufacturer Part Number (MPN) | 1610C3N1 (Standard 3-Phase ODP Baseline Configuration) |
| Connection Size (Inlet/Outlet) | 1-1/2" Flanged x 1-1/2" Flanged (Companion Flanges Included) |
| Motor Electrical Phase | 3-Phase (Three-Phase) |
| Motor Voltage Array | 200-230V / 460V Tri-Voltage Compatible |
| Motor Power Capacity | 1/3 HP |
| Motor Speed / Operating RPM | 1750 RPM |
| Maximum Flow Capacity | 70 GPM |
| Maximum Total Dynamic Head | 23 ft. |
| Maximum System Operating Pressure | 175 psi (12 bar) |
| Maximum Media Temperature Limit | 250°F (121°C) Standard |
| Volute and Impeller Materials | Cast Iron Housing Casing / 304 Stainless Steel Impeller |
| Product Shipping Weight | 61.00 lbs |
The Taco 1610 Three-Phase (1600 Series) in-line centrifugal pump is purpose-built to deliver continuous, quiet fluid circulation within medium-duty commercial HVAC, hydronic loop heating, and chilled water cooling systems. Engineered with a true multi-phase motor assembly, it delivers enhanced electrical efficiency and lower amp draw spikes under high industrial load demands, while its inline structural configuration allows direct pipeline installation to maximize mechanical room workspace.
To streamline system maintenance, the 1610 features a smart rear-pull-out architecture that allows commercial pipefitters to quickly service the impeller, shaft sleeves, and mechanical seals without breaking adjacent companion flange connections. It comes equipped with Taco's innovative, permanently lubricated "cool-running" bearing cartridge that isolates the grease-lubricated internal ball bearings from intense system fluid temperatures—drastically reducing thermal degradation and extending component runtime.
