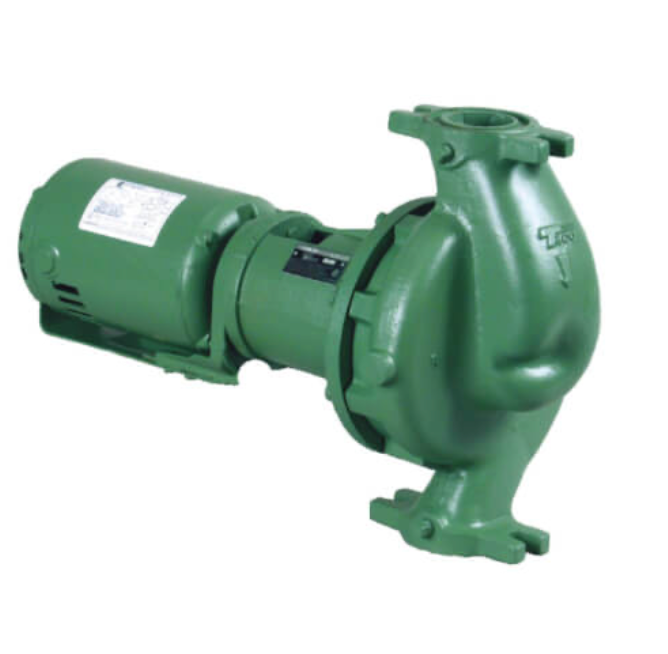

Taco 1610 Centrifugal Close-Coupled Inline Pump (1.5 HP Motor)
Taco 1610 Centrifugal Close-Coupled Inline Pump (1.5 HP Motor)
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Casing Material | Cast Iron |
| Motor Horsepower | 1.5 HP |
| Electrical Configuration | 115V/230V / 60 Hz / 1-Phase |
| Motor RPM | 1750 RPM (Continuous Duty) |
| Max Fluid Temperature | 250°F (121°C) |
| Max Working Pressure | 175 PSI |
| Impeller Type | Dynamically Balanced Bronze |
The Taco Comfort Solutions® 1600 Series (Model 1610) is a heavy-duty, close-coupled inline centrifugal commercial pump precision-engineered for quiet, dependable fluid distribution across heavy hydronic heating and cooling systems. Combining premium mechanical efficiency with a space-saving inline configuration, this 1.5 HP powerhouse eliminates complex alignment procedures, mounting effortlessly straight into your pipeline to handle high-head fluid demands.
Key Performance Features:
- Rugged Close-Coupled Architecture: Built with a heavy cast iron casing and dynamically balanced bronze impeller to deliver optimized flow characteristics and complete protection against cavitation or mechanical vibration.
- Maintenance-Free Sealed Ceramic Seal: Outfitted with an industrial-grade ceramic mechanical seal that completely sequesters the process fluid from the motor drive shaft, maximizing system uptime.
- Simplified Field Servicing: Features a rear pull-out design enabling maintenance crews to replace or inspect internal wear elements without disconnecting the main volute from the mechanical piping.
Engineered Fluid Applications: Rated for severe continuous-duty environments, this inline commercial circulator pump excels in multi-zone heating loops, large radiant boiler main lines, condenser cooling towers, and industrial process water loops.
Product Documents
