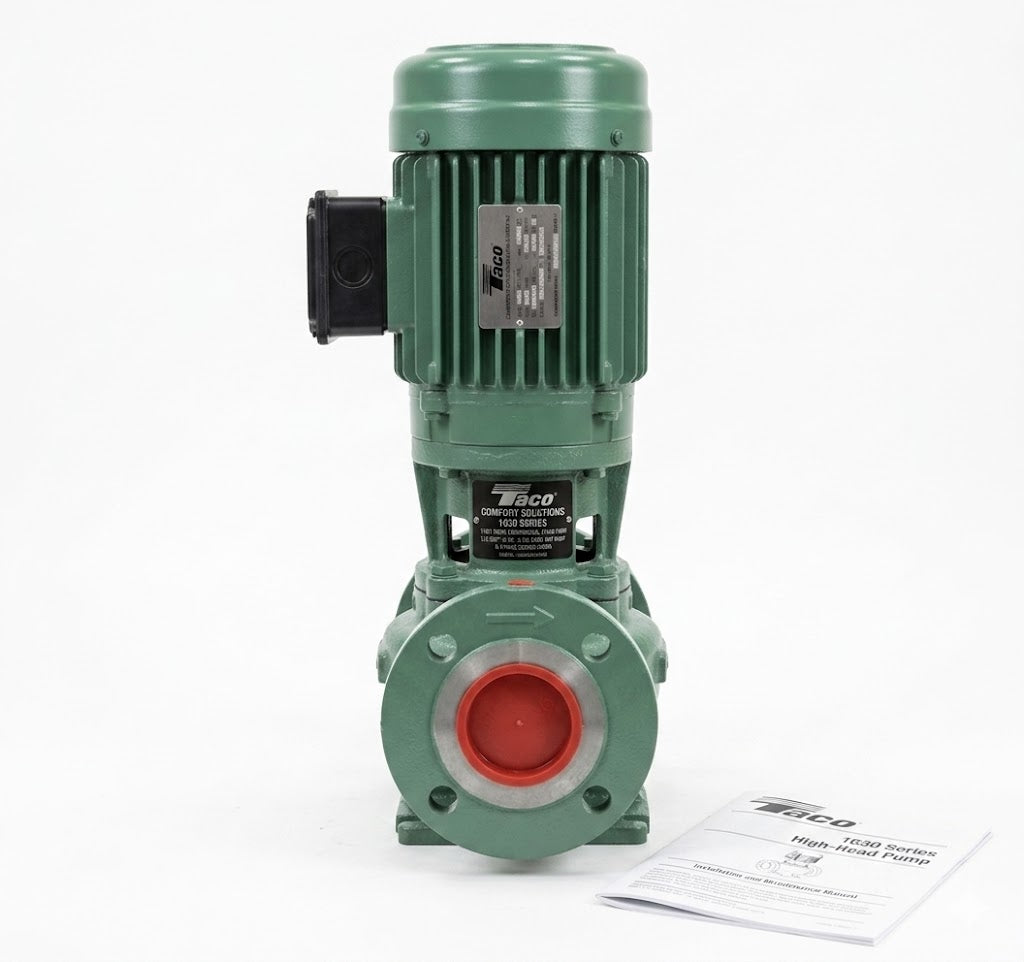

Taco 1630 High-Head Commercial Inline Pump
Taco 1630 High-Head Commercial Inline Pump
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Technical Specifications Matrix:
| Manufacturer Part Number (MPN) | 1630E3E10132096 (Standard Baseline Configuration) |
| Connection Size (Suction & Discharge) | 2" Flanged x 2" Flanged |
| Motor Power Rating | 1/2 HP |
| Motor Velocity / Speed | 1750 RPM |
| Maximum Flow Volume Range | 7 to 230 GPM |
| Maximum Dynamic Discharge Head | Up to 64 ft. |
| Maximum Working Pressure | 175 psi (12 bar) |
| Max Fluid Temperature Limit | 250°F (121°C) Standard |
| Volute Casing Material | Cast Iron Housing with 304 Stainless Steel Impeller |
| Bearing Architecture | Replaceable, Cool-Running Sealed Cartridge Assembly |
| Product Shipping Weight | 77.00 lbs |
The Taco 1630 Series (1600 Series) high-head commercial inline centrifugal pump is specifically engineered for demanding fluid circulation loops requiring higher GPM flow delivery alongside significant feet-of-head resistance. It serves as an ideal solution for medium-to-large commercial HVAC, hydronic heating, multi-zone cooling tower, and booster pressure installations where space is constrained but performance cannot be compromised.
Built with service efficiency in mind, the 1630 features Taco’s signature rear-pull-out architecture, enabling maintenance teams to fully service the internal mechanical components, seals, and shaft line without disconnecting or disturbing adjacent facility piping. An innovative, permanently lubricated, "cooler running" replaceable bearing cartridge effectively isolates the grease-lubricated ball bearings from high system fluid temperatures, preventing thermal stress, eliminating periodic oiling, and dramatically extending the overall operating lifecycle of the pump plant.
