Taco 5000 Series Mixing Valves
Taco 5000 Series Mixing Valves
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 5003-C3 (Variable by size/connection variant) |
| Regulatory Certifications | ASSE 1017, NSF 61, NSF 372, CSA B125.3 (Low-Lead Compliant) |
| Body Material Composition | Forged Low-Lead Brass Body / Stainless Steel Internal Springs |
| Temperature Control Range | 85°F to 150°F (29°C to 65°C) Adjustable Output Spectrum |
| Hot Water Inlet Range | 120°F to 180°F (49°C to 82°C) Minimum Differential 10°F Higher than Output |
| Maximum Operating Pressure | 150 PSI (1,034 kPa) Maximum Static Pressure |
| Minimum Operational Flow | 1.0 GPM (3.8 L/min) to Maintain Accurate Control Thermostat Sensing |
| Internal O-Ring Material | EPDM Seals (Resistant to High-Temperature Glycol & Detergents) |
Couldn't load pickup availability

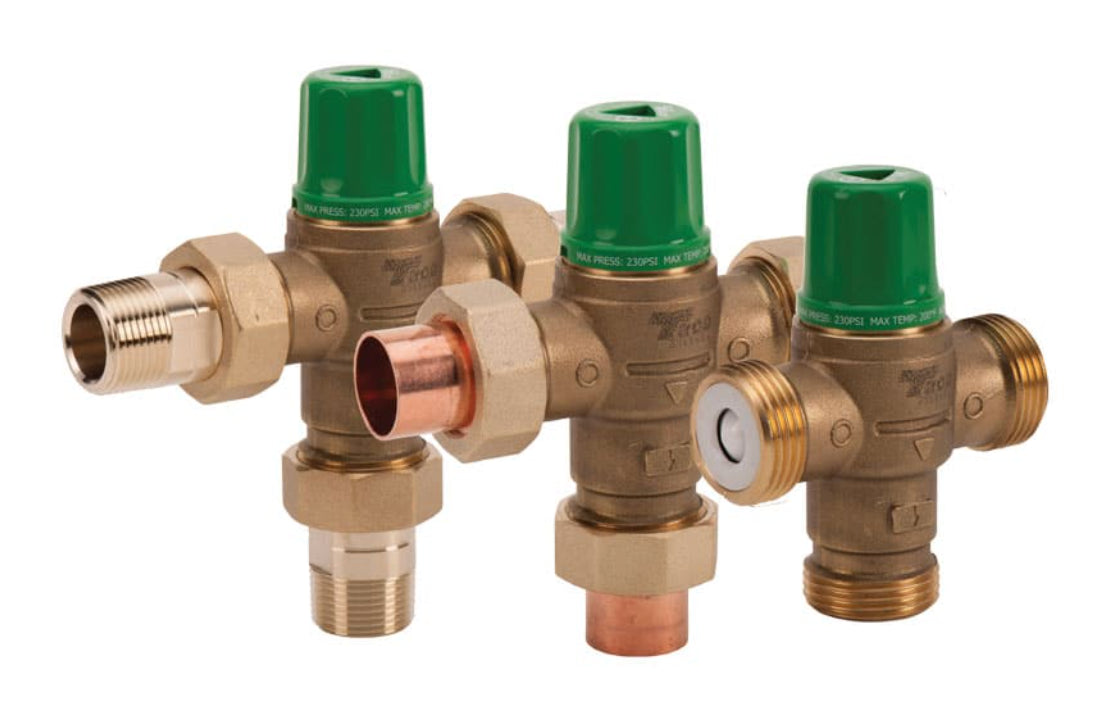

The Taco Comfort Solutions 5000 Series ASSE 1017 Certification Thermostatic Mixing Valve delivers point-of-source temperature control for domestic hot water distribution systems and hydronic heating loops. Engineered to blend hot water from the boiler or water heater with cold utility water, this premium valve provides a stable, tempered output that prevents thermal shocking and scalding while allowing high-temperature storage to eliminate Legionella bacteria growth.
Advanced Thermal & Safety Engineering:
- ASSE 1017 Point-of-Source Safety: Extensively tested and certified to ASSE 1017 standards for domestic water distribution systems, ensuring rapid fail-safe shut-off of the hot water supply if the cold water line drops pressure or fails completely.
- High-Flow, Low Head-Loss Design: Features an optimized internal port geometry that yields an exceptional Cv rating, minimizing system pressure drop and maintaining maximum volumetric flow rates across complex, multi-fixture residential and commercial plumbing grids.
- Lockable Tamper-Resistant Dial: Equipped with an adjustable, multi-turn top selector knob that features an integrated mechanical locking pin. This allows installers to precisely calibrate the output temperature gradient and lock it in place to prevent unauthorized adjustment.
Material and Fluid Compliance: Fabricated from low-lead forged brass conforming to strict NSF 61 and NSF 372 drinking water safety standards. Features dual internal check valves on the hot and cold inlets to eliminate cross-contamination or thermal migration back into cold supply lines.
