Taco Air Scoops
Taco Air Scoops
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Component Parameters |
|---|---|
| Manufacturer Product Family | Taco Comfort Solutions Air Scoop Series (Series 43) |
| Connection Availability | 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" Female NPT Threaded Options |
| Top Air Vent Tapping Port | 1/8" NPT Female Connection (Engineered for Taco 400-3 or 416-1 Hy-Vents) |
| Bottom Expansion Tank Tapping | 1/2" NPT Female Connection Threading |
| Maximum Rating Capabilities | Maximum Pressure: 125 PSI / Maximum Temperature: 300°F (135°C) |
| Body Casting Core Material | One-Piece, Heavy-Duty Industrial Structural Cast Iron Casing |
Couldn't load pickup availability

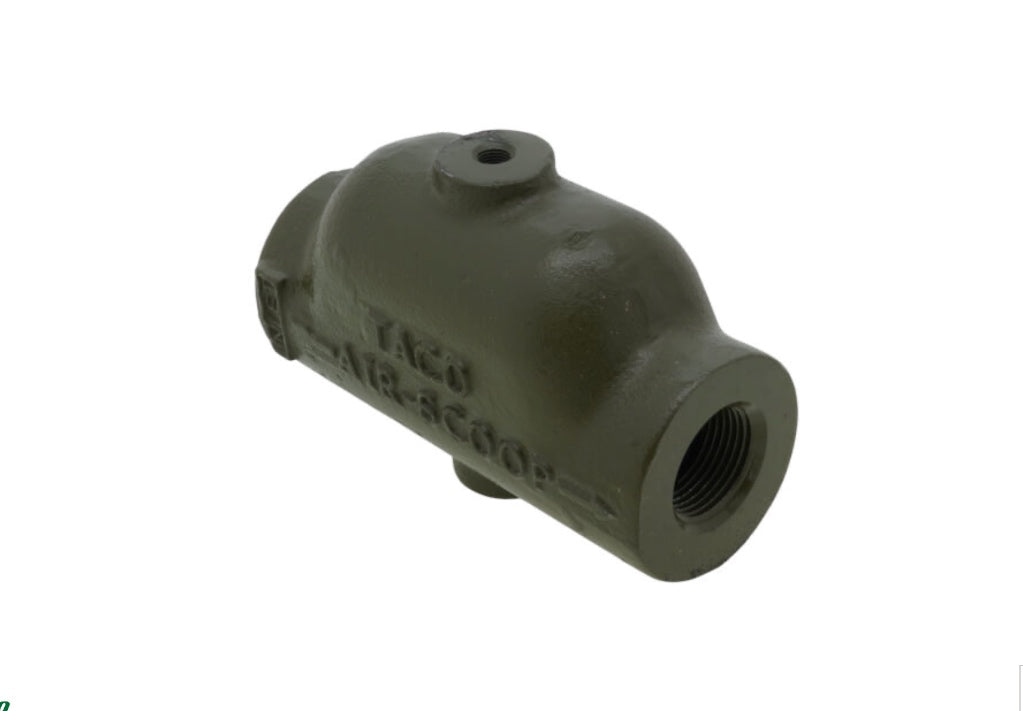

The classic Taco Air Scoop is an economical, service-free inline air separator engineered to remove entrained air from closed-loop hydronic heating and cooling lines. Utilizing an enlarged body reservoir paired with heavy internal casting contours, this component slows incoming fluid velocities to strip away noisy, corrosive micro-bubbles before they can cause pipe air-binding or accelerate pump wear.
Baffle Separation Mechanics & Layout Features:
- Velocity Reduction Trapping: Features a specialized internal baffle geometry that naturally strips lighter air pockets traveling along the horizontal top-half of fluid streams, redirecting them safely up into the venting throat.
- Dual Tank Expansion Integration: Standard-equipped with a 1/2" female NPT bottom tapping port to facilitate clean, inline hanging of a diaphragm expansion tank directly below the scoop, saving valuable mechanical wall real estate.
- One-Piece Cast Iron Durability: Engineered from a solid cast iron block that requires absolutely zero internal replacement components, field maintenance, or scheduled seasonal oversight.
System Requirements Note: Air scoops must be installed strictly horizontally to allow proper buoyant bubble routing, and require a 1/8" automatic Hy-Vent or air bleeder installed directly on the top tapping port for active air rejection.
