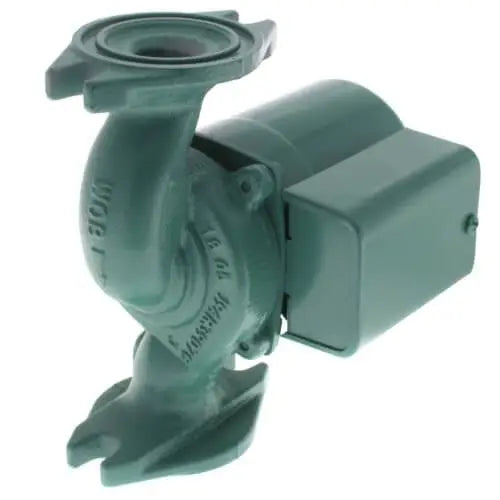

Taco 007-F5 Cast Iron Circulator Pump (1/25 HP Flanged)
Taco 007-F5 Cast Iron Circulator Pump (1/25 HP Flanged)
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Manufacturer Part Number (MPN) | 007-F5 |
| Casing Material | Rugged Heavy-Wall Cast Iron |
| Motor Power Specification | 1/25 HP, 3250 RPM, 0.71 Amps |
| Electrical Configuration | 115 Volt, 60 Hz, Single Phase |
| Connection Type | Universal Flanged Connection Matrix |
| Maximum Flow Capacity | 23 GPM Maximum Flow |
| Maximum Head Resistance | 10 Feet Maximum Head |
| Working Pressure Rating | 125 PSI Maximum Static |
| Product Shipping Weight | 6.55 lbs |
The Taco Comfort Solutions® 007-F5 Series 007 Cast Iron Circulator Pump is the industry's most popular maintenance-free, wet-rotor inline cartridge pump designed for structural reliability in closed-loop hydronic heating, radiant floor manifolds, and secondary LoadMatch® loop climates. Engineered for ultra-quiet continuous service, this single-stage circulator establishes a localized low pressure differential to defeat pipe friction and maximize water distribution across your zones without burning excess juice.
Featuring an innovative self-lubricating profile that completely lacks a traditional mechanical seal, the 007-F5 effectively immunizes itself against premature fluid leaks. The standout highlight is its field-serviceable replaceable cartridge body, which houses all internal moving parts—meaning any future line maintenance requires a fast, simple cartridge drop without ever tearing the main cast iron casing off the plumbing loop lines.
