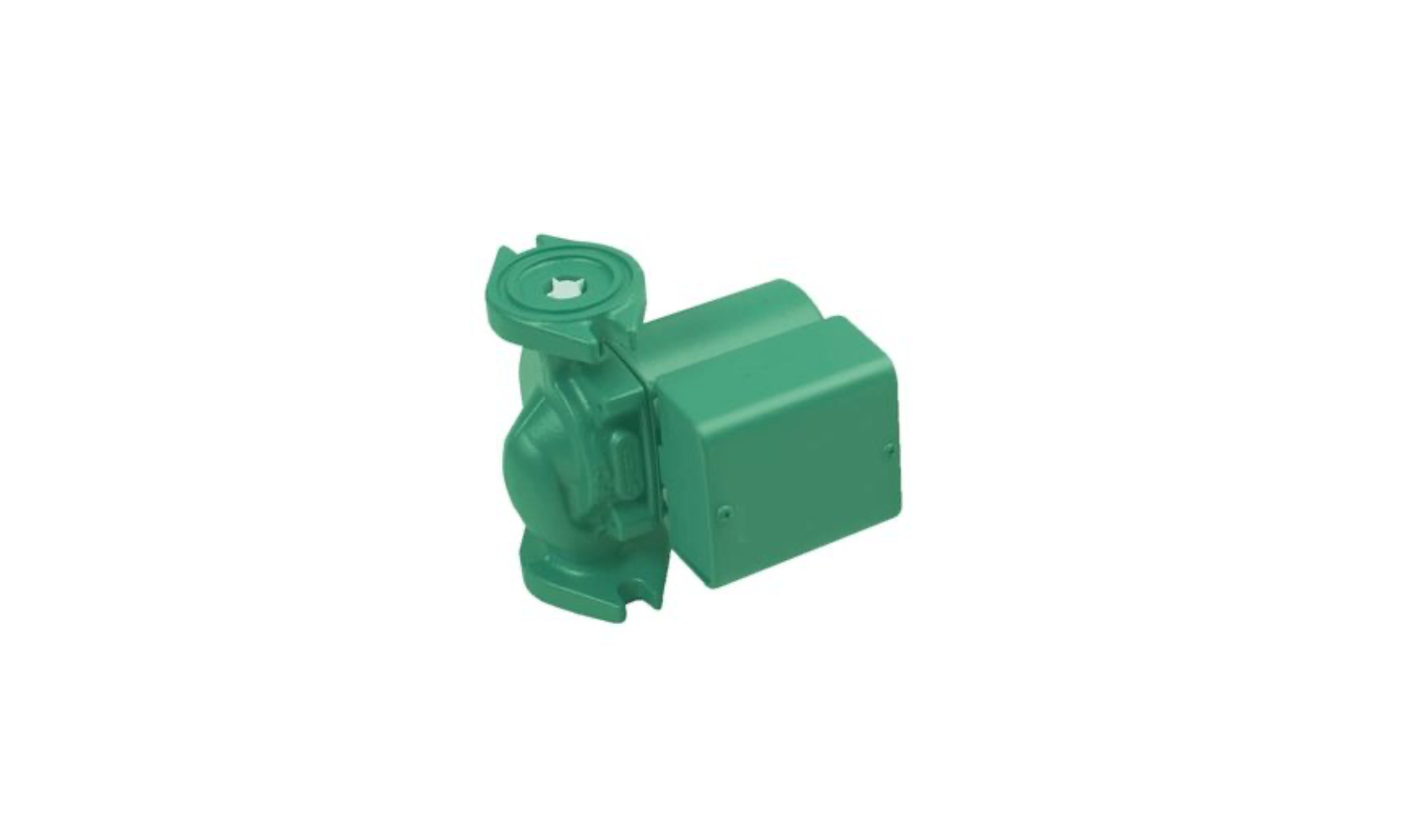

Taco LoadMatch System
Taco LoadMatch System
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical System Metric | Operational Engineering Performance Profile |
|---|---|
| Manufacturer Framework | Taco Comfort Solutions Commercial LoadMatch® System |
| Maximum Working Pressure | 200 PSI Maximum Structural Threshold |
| Fluid Operational Range | Min: 32°F (0°C) | Max Chilled/Heated Hydronic Peak: 230°F (110°C) |
| Electrical Availability Specs | Available in 115V, 230V, or 277V Standard Commercial Configurations |
| Circulator Core Interface | Replaceable Cartridge Design with Integral Flow Check (IFC) and Anti-Condensate Baffle |
| System Piping Connectivity | 3/4", 1", 1-1/4", 1-1/2" Flanged and 3/4" Sweat Connection Frameworks |
Couldn't load pickup availability
The Taco LoadMatch System represents a revolutionary leap forward in Green Building hydronic infrastructure, utilizing a self-balancing hydronic single-pipe loop that significantly undercuts traditional multi-pipe installation costs. By combining primary-secondary pumping theory with advanced wet-rotor localized technology, this layout provides elite zoning comfort, eliminates complex air-balancing procedures, and slashes lifecycle operating energy by up to 50% compared to typical air-cooled HVAC systems.
Advanced Engineering Benefits & Decoupled Mechanics:
- Maintenance-Free Wet Rotor Technology: LoadMatch Series circulators run completely quiet, feature self-lubricating water-cooled cartridges, and require zero mechanical seals—allowing easy, localized field servicing without separating the pump casing from the system piping network.
- Patented Twin-Tee Integration: Utilizing Taco's patented Twin-Tee fittings ensures secondary circuits remain fully hydraulically decoupled. When a specific secondary zone pump is idle, ghost flows and unintended thermal migration drop to absolute zero.
- Integral Flow Check & Anti-Condensate Defenses: Every individual circulator block comes standard-equipped with a spring-loaded Integral Flow Check (IFC) and an exclusive structural anti-condensate baffle, actively preventing motor winding moisture build-up during intense chilled water operations.
High-Rise Application Flexibility: Boasting a standard heavy-duty structural pressure rating of 200 PSI, LoadMatch components seamlessly drop into medium and high-rise commercial structures without requiring complex, hydraulically isolated subsystem modifications.
