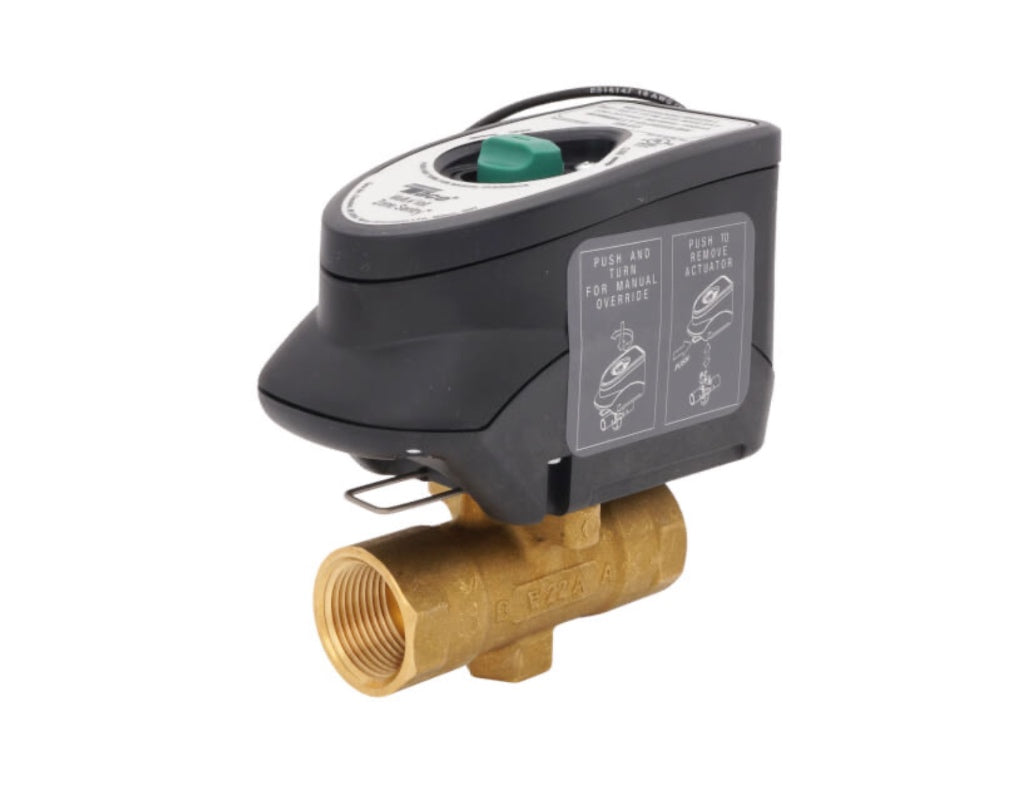

Taco Multi-Volt Zone Sentry Zone Valve
Taco Multi-Volt Zone Sentry Zone Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Specification Metric | Operational Performance Data |
|---|---|
| Manufacturer Product Line | Taco Multi-Volt Zone Sentry® Commercial Series |
| Input Voltage Compatibility | 120V to 277V AC Range Universal (50/60Hz Range) |
| Maximum Working Pressure | 300 PSI Operational Ceiling |
| Maximum Close-Off Rating | 125 PSI High-Pressure Differential Shut-Off |
| Fluid Temperature Parameters | 20°F to 220°F (-7°C to 104°C Limits) |
| Actuator Diagnostics | Multi-Function LED Status Indicator & Mechanical Override Push-Button |
Couldn't load pickup availability
The Taco Multi-Volt Zone Sentry® Zone Valve delivers a new tier of versatility to commercial HVAC, fan coil, and variable air handler systems. Outfitted with a high-efficiency universal actuator that accepts input power anywhere between 120V and 277V AC natively, this premium valve completely eliminates the need for field-installed step-down transformers—saving structural space and shortening contractor wiring layouts.
High-Performance Microcircuit & Ball Valve Mechanics:
- Universal Auto-Sensing Actuator: Runs on a single universal actuator head that dynamically handles 120V, 208V, 230V, or 277V single-phase commercial lines without manual toggling or risk of component burnouts.
- Patented Bidirectional Ball Valve: Built around a solid ball-valve core offering unmatched fluid flow capacity (high Cv ratings) and a rock-solid shut-off seal rating capable of containing up to 125 PSI backpressure.
- Condensing-Chilled Defenses: Specially sealed housing prevents internal ambient condensate accumulation, letting you confidently deploy the valve across high-humidity chilled water grids without circuit damage.
Instantaneous Field Maintenance: Engineered with a toolless quick-release push button clip that lets you swap out or rotate the electrical actuator head on the solid brass body instantly, without draining the system fluid loop.
