Taco Potable Water Zone Sentry Zone Valve
Taco Potable Water Zone Sentry Zone Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Maximum Static Pressure | 300 PSI (2,100 kPa) |
| Maximum Close-Off Pressure | 125 PSI (875 kPa) |
| Lead Safety Certification | NSF 61 G Compliant (≤ 0.25% Lead Content) |
| Electrical Spec Loop | 24 VAC, 60Hz, 0.48 Amps |
| Power Draw (Modulating / On) | 11.4W Charging / 1.44W Power On |
| Fluid Temperature Boundaries | 20°F — 220°F (-7°C — 105°C) |
| Valve Material Infrastructure | Forged Bronze Body, Brass Ball, Modified Teflon® Seats |
Couldn't load pickup availability

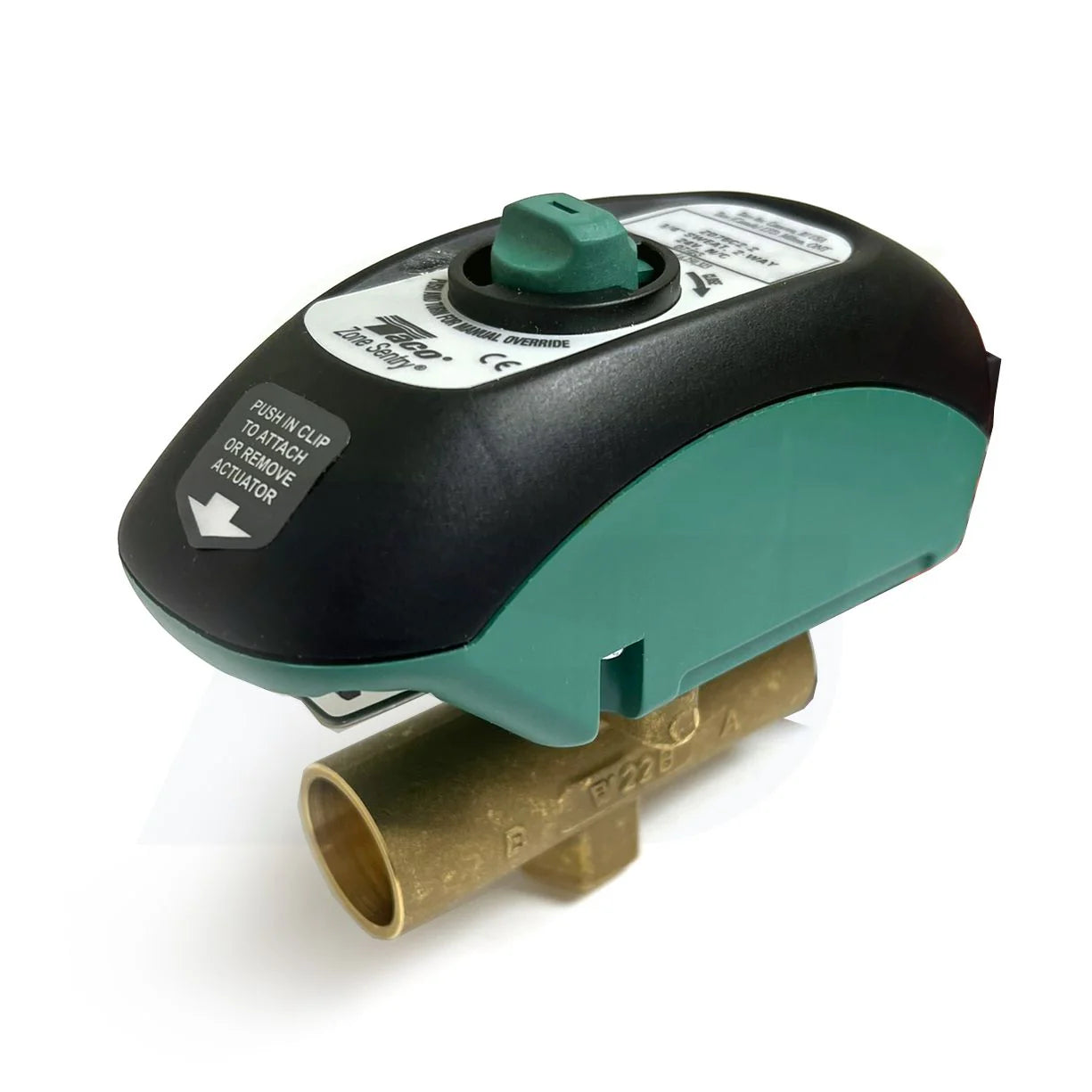

The Taco Comfort Solutions® Potable Water Zone Sentry® Zone Valve is a lead-free certified, high-performance ball valve engineered to provide reliable fluid isolation across open potable systems. Certified to strict NSF 61 G standards, this valve features advanced microcircuit-based logic coupled with a gear-driven electronic actuator. This design delivers incredible flow capacity (Cv) and high shutoff pressure ratings while operating on a fraction of the electricity used by traditional heat-motor zone valves.
Key Performance Features:
- Industry-Leading Energy Efficiency: The intelligent actuator design draws minimal continuous power once fully opened, allowing up to 12 Zone Sentry valves to be wired directly into a single standard 40VA transformer.
- Universal Installation & Bi-directional Flow: Built with ultimate field versatility in mind, the valve can be installed in any pipeline orientation. Its bi-directional flow profile means it cannot be installed backward.
- Smart Diagnostics & Simple Servicing: Features an integrated, multi-function green LED panel that guides troubleshooting by indicating full operational functionality or capacitor charge status. It is finished with an easy wire quick-connect terminal and a quick-release actuator clip for no-drain toolless replacements.
Application Profile: Ideal for combination domestic water and hydronic heating systems, culinary water main lines, and secondary water shutoffs to commercial or residential potable water infrastructures.
