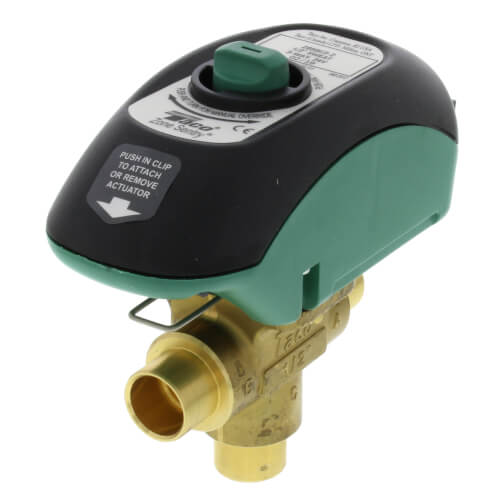

Taco Z050C3-2 1/2" 3-Way Zone Sentry Valve (Normally Closed Sweat)
Taco Z050C3-2 1/2" 3-Way Zone Sentry Valve (Normally Closed Sweat)
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Manufacturer Part Number (MPN) | Z050C3-2 (Modern Replacement for 560-5) |
| Valve Configuration | 3-Way Bypass (Normally Closed) |
| Connection Size / Type | 1/2" Female Sweat Connection Ports |
| Body Construction Material | High-Grade Forged Brass |
| Electrical Input Draw | 24 VAC, 60 Hz, 0.48 Amps (During Charge) |
| Maximum Fluid Flow Rate | 3.3 Cv Maximum Capacity |
| Maximum Static Pressure | 300 PSI (2,100 kPa) |
| Maximum Shut-Off Differential | 125 PSI (875 kPa) |
| Product Shipping Weight | 2.10 lbs |
Couldn't load pickup availability
The Taco Comfort Solutions® Zone Sentry® Z050C3-2 1/2" 3-Way Normally Closed Zone Valve is the next-generation microcircuit-controlled successor to legacy heat-motor valves. Engineered for maximum fluid efficiency in multi-zone residential and light commercial hydronic heating layouts, this valve utilizes a high-torque motorized ball mechanism rather than an expanding thermal motor. This design cuts electrical power consumption by up to 93% while establishing an incredibly reliable, positive shut-off that completely prevents ghost flow and hot water bleed-through into inactive zones.
The Z050C3-2 features a universal, bidirectional flow architecture, making it highly versatile for mixing or diverting applications within bypass loops and radiant manifolds. Its patented quick-release actuator head can be snapped onto the raw brass valve body in either direction, allowing effortless installation in compact mechanical closets. Equipped with a vivid external green LED for real-time diagnostic reporting and a simple button for manual override operations, this valve provides mechanics with unprecedented field usability.
Advanced Engineering Features:
- High-Torque Efficiencies: High-efficiency microcircuit capacitor tech draws a minimal 11.4 Watts during cycles, allowing up to 12 Zone Sentry valves to comfortably run off a single 40VA transformer.
- Toolless Head Replacement: Actuator body snaps off cleanly with the push of a locking button, enabling fast electronics service without opening the closed plumbing loop.
- Diverting & Mixing Geometry: Full 3-way distribution mapping serves as an exact modern drop-in replacement for old discontinued Taco 560-5 models.
