TacoSetter Bypass 1" High-Capacity Balancing Valve
TacoSetter Bypass 1" High-Capacity Balancing Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 7205-3 |
| Main Interface Size | 1" Union Configuration (Customizable Union Ends Sold Separately) |
| Operational Flow Envelope | 2.0 to 8.0 Gallons Per Minute (GPM High-Capacity Range) |
| Maximum Working Pressure | 145 PSI (10 bar Maximum Threshold) |
| Maximum Continuous Temp | 212°F (100°C) Boiler Loop Limits |
| Primary Housing Forging | Machined Forged Brass Body |
| Internal Seals & O-Rings | High-Grade EPDM Compound |
| Integrated Shut-off Valve | Positive Isolation Ball Valve Control Nut Included |
Couldn't load pickup availability

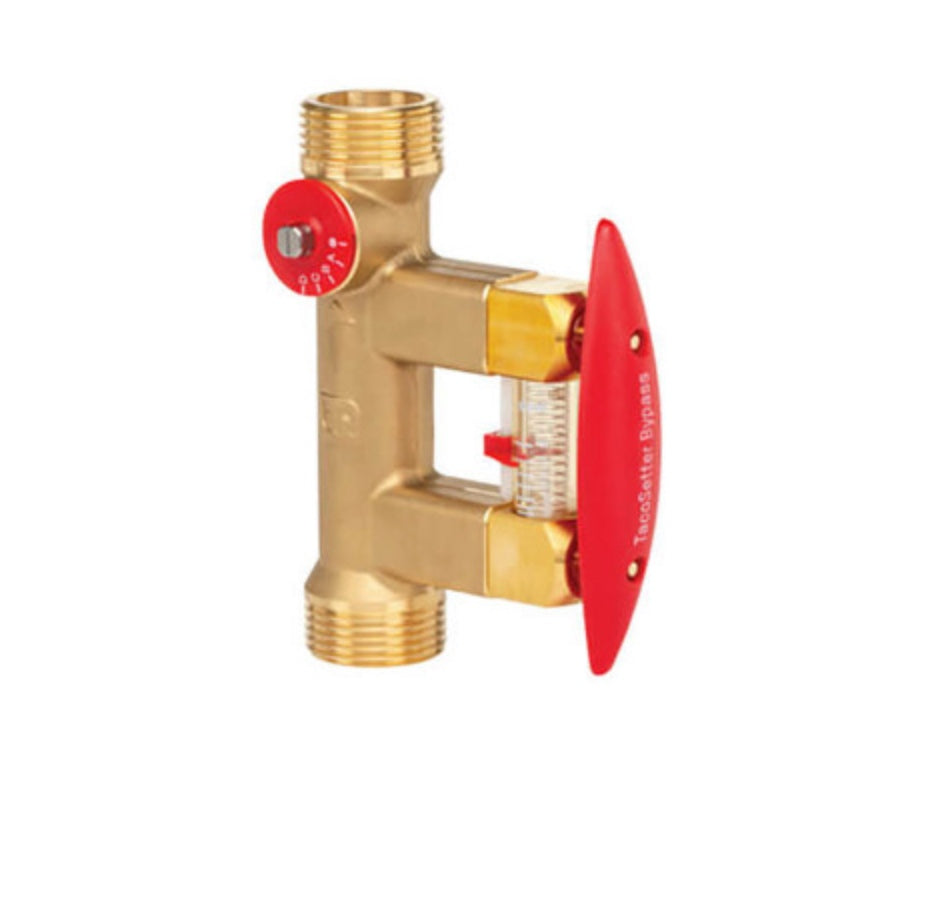

The Taco Comfort Solutions 7205-3 TacoSetter Bypass balancing valve stands as the industry-leading benchmark for fast, accurate flow regulation across closed-loop hydronic heating and cooling systems. Engineered out of robust premium brass, this 1" union connection valve uses a unique mechanical bypass assembly that gives installers direct visual confirmation of real-time flow data while introducing minimal continuous flow friction to the system loop.
Key Mechanical Features & System Capabilities:
- Instant Visual GPM Reader: Outfitted with an impact-resistant sight glass housing a calibrated internal spring-loaded baffle float. Pressing down on the exterior bypass clamp instantly paths water through the viewing pane to reveal your exact flow rate reading in Gallons Per Minute.
- Smart Memory Setpoint Stop: Equipped with an adjustable external indicator ring. Once your ideal flow rate balance is configured via the slotted dial, lock down the memory slider to preserve your precise hydronic system calibration point following downstream isolation maintenance.
- Universal Installation Orientation: Carefully constructed to allow complete fluid reading accuracy when positioned horizontally, vertically, or along angled pipeline gradients—provided that the housing directional arrow tracks matching flow dynamics.
Fluid Limitations: Rated exclusively for closed-loop HVAC systems. Not suitable for open-loop potable domestic drinking water infrastructure. Approved for water and closed-loop glycol combinations up to 50% max dilution capacity.
