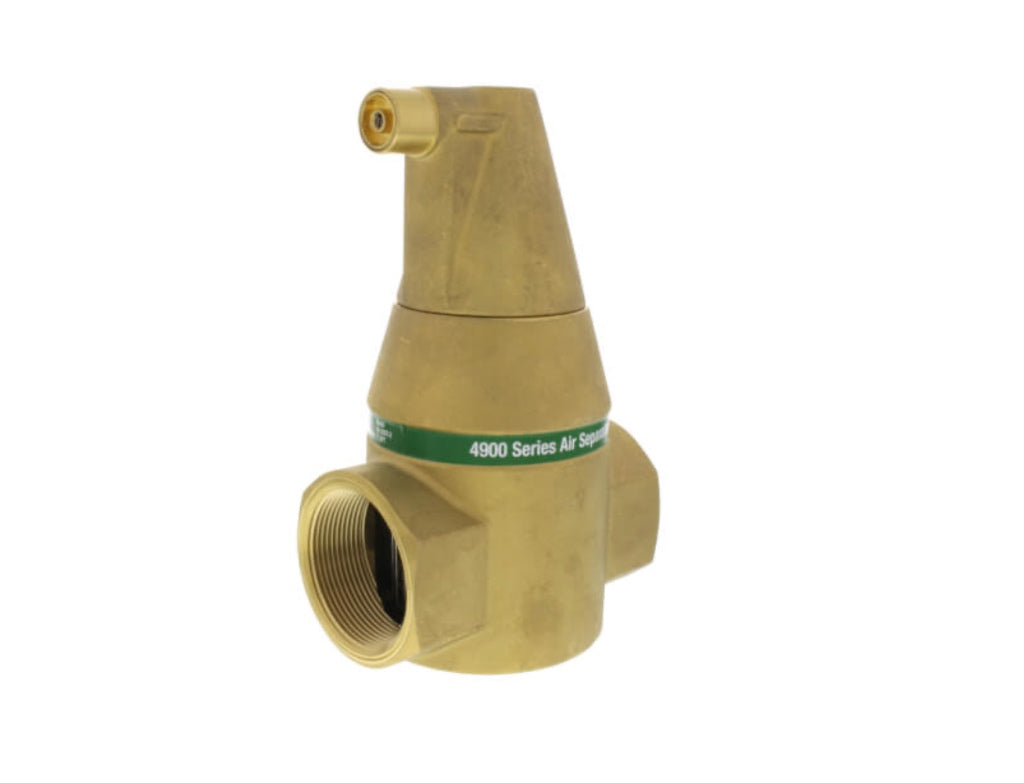

Taco 49-200T-2 2" NPT Brass Air Separator
Taco 49-200T-2 2" NPT Brass Air Separator
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 49-200T-2 |
| Connection Interface | 2" Female NPT (Threaded Entry/Exit) |
| Body Core Construction | Commercial-Grade Cast Brass |
| Internal Separation Matrix | Patented Stainless Steel PALL Rings |
| Maximum Pressure Threshold | 150 PSI |
| Maximum Fluid Operating Temp | 240°F (115°C) |
| Flow Mechanics Strategy | Bidirectional Hydro-Separation Process |
| Tank Tap Connection Size | 1/2" Female NPT |
Couldn't load pickup availability
The Taco Comfort Solutions 49-200T-2 represents the modern commercial standard in micro-bubble and dissolved gas elimination within closed hydronic systems. Replacing legacy cast-iron air separators, this heavy-duty brass unit utilizes Taco's patented, independently proven PALL Ring coalescence process. As system water collides with the internal PALL ring matrix, micro-bubbles as tiny as 15 microns instantly adhere to the surface area, joining together to form larger air pockets that effortlessly float upward into a specialized conical venting chamber.
Key Mechanical Features:
- Patented PALL Ring Coalescence: Engineered to provide up to three times more effective air elimination than comparable inline micro-bubble models, radically reducing systemic corrosion, pump cavitation, and whistling radiator noise.
- Fouling-Resistant Conical Chamber: Built with a specialized deep cone configuration that maintains a protective separation gap between the water level and the internal mechanical gearing, preventing debris or oil scum from clogging the venting valve.
- True Bidirectional Layout: Features zero flow direction orientation constraints. Its engineered symmetry allows fluid entry from either side, minimizing pipe layout planning hours in tight commercial mechanical configurations.
Installation Adaptability: Requires no minimum runs of straight pipe upstream or downstream of the unit. Formed with a convenient 1/2" female NPT tapping port directly in the bottom base of the solid brass body to facilitate clean, direct staging for a hydronic expansion tank.
