Taco Zone Sentry High-Performance Motorized Zone Valves
Taco Zone Sentry High-Performance Motorized Zone Valves
Brand: Taco
SKU: SKU-SENTRY-FLAT
Regular price
$226.38 USD
Regular price
Sale price
$226.38 USD
Ships Direct from Distribution — Dispatches in 24–48 Hrs
Quantity
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
🏢
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Mechanical Parameter | Factory Specification |
|---|---|
| Manufacturer | Taco Comfort Solutions |
| Series | Zone Sentry Series |
| Base Model Number (MPN) | Z075C2-1 |
| Connection Style | 3/4" Sweat (Solder) Connection |
| Default Configuration | Normally Closed (NC) with End Switch |
| Electrical Input | 24 VAC, 60 Hz, 0.06 Amps max running |
| Maximum Close-Off Pressure | 125 PSI (862 kPa) |
| Maximum Fluid Temperature | 220°F (104°C) |

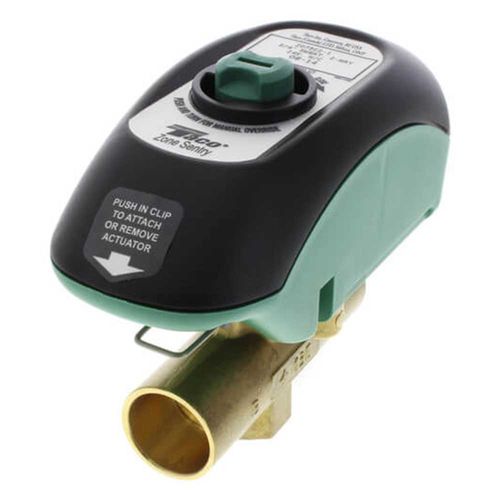

The Taco Zone Sentry High-Performance Motorized Zone Valve (MPN: Z075C2-1) represents a major leap forward in hydronic efficiency. Operating on a patented micro-circuit design, the Zone Sentry delivers high-torque closing power while drawing up to 93% less electrical energy than traditional heat-motor zone valves.
Advanced Operational Advantages:
- Ultra-Low Power Footprint: Uses a high-efficiency capacitor charging engine to draw a mere 1.44 Watts (0.06 Amps) while operating, allowing up to 12 zone valves to be safely powered by a single standard 40VA transformer.
- Bidirectional Solid-State Shutoff: Engineered with a high-torque ball-valve design that handles extreme close-off pressures up to 125 PSI without weeping, leaking, or introducing water hammer.
- Tool-Free Actuator Removal: Features a quick-release button that allows the complete actuator head to be unlatched from the brass valve body in seconds without shutting down or draining the hydronic system loop.
Media & Installation Parameters:
- Multi-Directional Flow: True universal flow path means the valve cannot be installed backward; fluid can run in either direction with zero performance impact.
- Fluid Application: Perfect for closed-loop space heating, chilled water cooling setups, and water/glycol mixtures up to a 50% max volumetric ratio.
Product Documents
