Taco Zone Sentry 1" NPT Automated Flow Valve
Taco Zone Sentry 1" NPT Automated Flow Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | V010C2A2 |
| Connection Interface | 1" Female NPT (Threaded Brass) |
| Operating Input Voltage | 24 VAC (60 Hz, Single Phase) |
| Power Consumption (Running) | 1.44 Watts (0.06 Amps max during travel) |
| Maximum Fluid Close-Off | 125 PSI (862 kPa) |
| Valve Fluid Flow Capacity | 10.3 Cv Max Rating |
| Maximum Fluid Temperature | 220°F (104°C) |
| End Switch Configuration | Built-In Micro-Switch (Sealed 0.4 Amp max auxiliary circuit) |
Couldn't load pickup availability

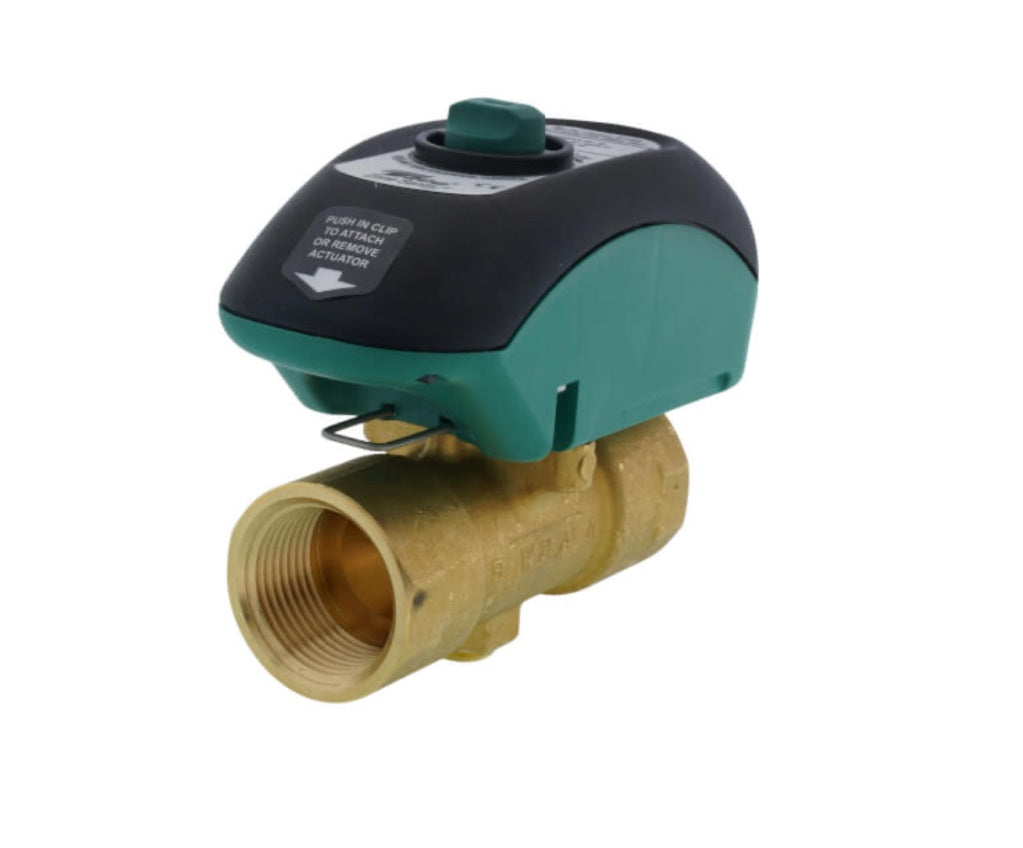

The Taco Comfort Solutions V010C2A2 Zone Sentry® Motorized Zone Valve sets the commercial benchmark for high-efficiency fluid control in multi-zone hydronic heating and cooling systems. Engineered with a high-torque, microprocessor-controlled motorized actuator mated to a solid brass 1" NPT ball valve body, this assembly provides bi-directional flow control and positive shut-off up to its full fluid rating. By utilizing an advanced microcircuit gear design, the Zone Sentry completely replaces inefficient legacy thermal heat-motor valves, drawing up to 93% less electrical energy during continuous operation.
Key Electrical & Mechanical Benefits:
- Unmatched Electrical Efficiency: Draws a minimal 1.44 Watts (0.06 Amps) only while actively modulating, allowing up to 12 Zone Sentry valves to be securely powered by a single, standard 40VA multi-zone transformer.
- High Close-Off Pressure Performance: The rugged commercial ball-valve core provides a robust close-off pressure rating of up to 125 PSI, entirely eliminating system water hammer, bypass leakage, or velocity whistling.
- Toolless Actuator Snap Lock: Features a patented push-button quick release mechanism that enables the green actuator head to be detached from the brass body in seconds without shutting down the hydronic loop or draining fluid.
Operational Functionality: Operates as a Normally Closed (N/O) or Normally Closed (N/C) physical assembly based on specified installation leads. Includes a built-in manual override lever on the actuator top cover to permit manual flow balancing during diagnostic or filling procedures.
