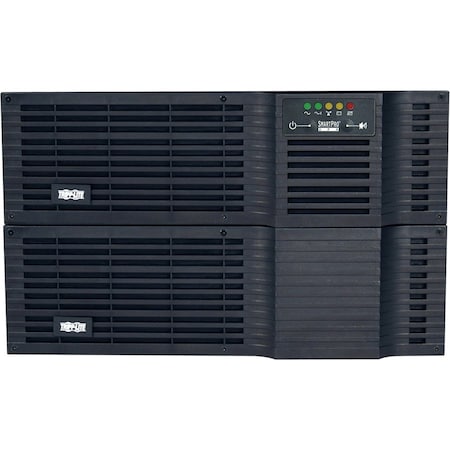

Tripp Lite SMART5000RT3U - 5k VA/4k W Rack/Tower Line-Interactive UPS 208 V/120 V

The TRIPP LITE SMART5000RT3U is a line-interactive rack/tower UPS 5 kVA (5000 VA) / 4 kW with a 208V AC input and selectable dual output voltages (110/115/120/208V). It includes automatic voltage regulation (AVR) for operation within the specified input voltage range and transfer thresholds (151–282V), and ships with a BP48V60RT3U external battery pack for a combined 6U rack height (3U UPS + 3U battery).

Key Features:

• Capacity: 5000 VA / 4000 W (power factor 0.8); output power may be limited; this model supports an output of up to 4800 W when configured with hardwired connection or a 50A input per specifications.
• Topology and waveform: Line-interactive UPS; output voltage regulation is maintained when input is within 151–282V per specifications; AVR provides output regulation within the specified input voltage range of 151–282V.
• Voltage correction and transfer: Severe undervoltage boost for inputs 151–179V (24%); undervoltage for inputs 180–199V (12%); overvoltage for inputs 240–260V (12% reduction); high/low transfer setpoints 260V / 151V; output voltage regulation of ±5% while operating in battery mode.
• Runtime and batteries: Half-load runtime 38 min (2000 W); full-load runtime 16 min (4000 W); sealed lead-acid (VRLA) batteries, 48 V DC system; battery recharge time is specified as <4 hours for 10% to 90% state of charge; battery replacement interval is specified as 6 years for the provided battery type under specified operating conditions; batteries are designed for hot-swappable replacement and user-serviceable replacement per the manufacturer’s instructions; external battery expansion models: BP48V24-2U, BP48V60RT-3U, BP48V27-2US.
• Outlets and load control: 14 total outlets—(10) 5-15R, (2) 5-20R, (1) L6-30R, (1) L14-30R; eight individually switchable 5-15R load banks for remote power control/load shedding.
• Communications and management: Includes USB and DB9 cabling; 4 built-in communications ports (2 DB9, 2 USB) plus contact-closure port; SNMP/web card slot (SNMPWEBCARD/WEBCARDLX) and compatible with SNMPWEBCARD/WEBCARDLX and environmental sensors per manufacturer compatibility list.; PowerAlert software included.
• Input and installation: Input 208V AC via 10 ft cord with NEMA L6-30P; rated input current 24 A (30A input breaker required); 30A double-pole input breakers; rackmount primary form factor with included 4POSTRAILKIT brackets (4-post 20.5–36 in).
• Indicators and alarms: Diagnostic LEDs covering 17 conditions; 5 front-panel LEDs for power/voltage/battery/load status; audible alarm for power-failure, overload and low-battery; alarm-cancel/self-test switch.
• Physical and performance: UPS module dimensions 5.2 x 17.5 x 22.5 in (H x W x D); total rack height 6U (UPS + battery pack); efficiency is 0.94 at 100% load while operating in AC mode; audible noise 45 dBA (front, 1 m); surge rating is 1,020 J; EMI/RFI and data-line surge protection included.
• Additional features and compliance: EPO interface; supports cold start per manufacturer specifications; supports Watchdog and remote reboot options; certifications: UL1778, CSA, NOM, FCC Part 15 Class A, RoHS.
