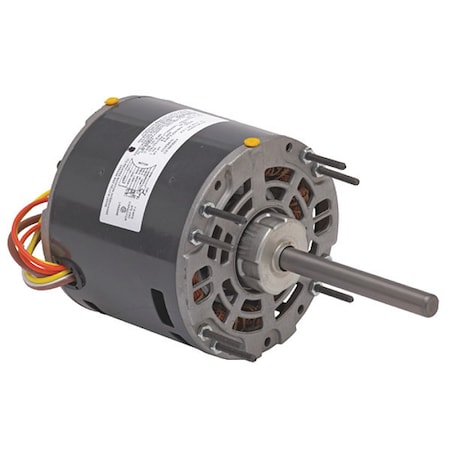

Order the U.S. Motors 1390 Motor from National Boiler Supply. Call our order desk at 850-565-3492 for a formal quote or a part number cross-check.
Technical Specifications
| Brand | U.S. Motors |
|---|---|
| Manufacturer Part Number | 1390 |
| Phase | Single |
| Motor Design | Permanent Split Capacitor |
| Horsepower | 1/4 hp |
| Nameplate RPM | 1,050 RPM |
| No. of Speeds | 3 |
| Voltage | 115V AC |
| Full Load Amps | 2.8 A |
| Output Watts | 200 W |
| Frequency | 60 Hz |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Duty Cycle | Continuous |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Stud |
| Motor Frame Material | Steel |
| Shaft Length | 4 11/32 in |
| Shaft Dia. | 1/2 in |
Additional details: 42 Frame.
OEM Part Verification: Confirm U.S. Motors part number 1390 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
