Watts 1/2"" Series U5B Commercial High Pressure Reducing Valve
Watts 1/2"" Series U5B Commercial High Pressure Reducing Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Ordering Code | 0059864 (Model: U5B-HP-Z3 1/2) |
| Inlet / Outlet Connection Size | 1/2" Female NPT Threaded Union Inlet x Female NPT Threaded Outlet |
| Maximum Inlet Rating | 300 PSI (20.7 bar) Structural Working Capacity |
| Adjustable Outlet Delivery Range | High-Pressure (HP) Variant: 75 to 100 PSI (Factory Set at 90 PSI) |
| Casting & Spring Cage Materials | Heavy-Wall Bronze Valve Body / Z3 Sealed Epoxy-Coated Spring Cage |
| Operating Temperature Bounds | 33°F to 160°F (0.5°C to 71°C) Fluid Threshold |
| Code Compliance & Certifications | ASSE 1003, ANSI A112.26.2, CSA B356, Listed by IAPMO |
Couldn't load pickup availability

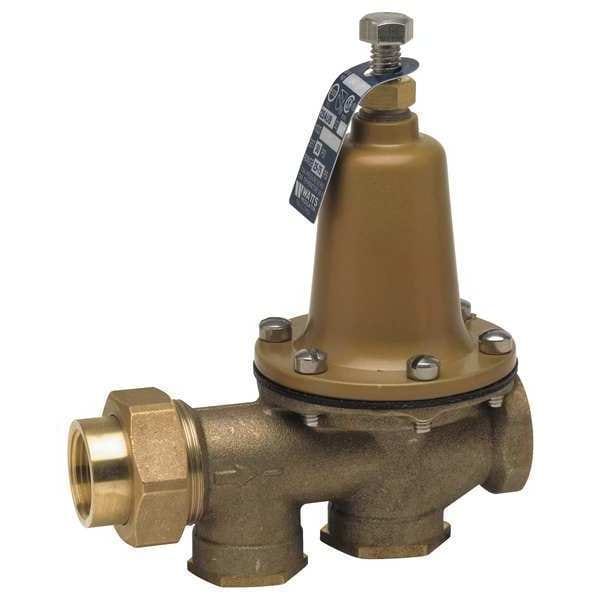

The Watts 0059864 (Model U5B-HP-Z3) is a genuine 1/2-inch commercial-tier high-performance water pressure reducing valve designed for demanding commercial, industrial, and institutional water delivery mains. Featuring a heavy-duty bronze casting and a high-capacity sealed spring cage, this valve safely handles incoming municipal supply pressures up to 300 PSI, regulating it to a highly accurate downstream threshold to minimize water consumption and shield plumbing grids from destructive pressure surges.
Advanced Heavy-Commercial Fluid Control Engineering:
- Integrated Stainless Steel Strainer: Equipped with a large, built-in stainless steel mesh screen that traps pipeline scale, sediment, and weld beads. The strainer module can be easily removed for cleaning without removing the valve from the main piping run.
- Thermal Expansion Bypass Feature: Features an optimized, internal mechanical check bypass mechanism that safely vents elevated thermal expansion pressures back into the supply main when water heaters cycle, preventing closed-loop over-pressurization.
- High-Pressure "HP" Custom Configuration: Specially built for high-demand zones, this "HP" model features an upgraded spring matrix capable of dialing in precise downstream delivery pressures between 75 and 100 PSI, maintaining exceptional volumetric accuracy under massive flow rates.
Maintenance & Accessibility: Designed for rapid mechanical room uptime, the U5B series features a fully replaceable seat module and a removable disc holder. The entire valve can be fully serviced in-line without requiring special technical tools or disconnecting adjacent union joints.
