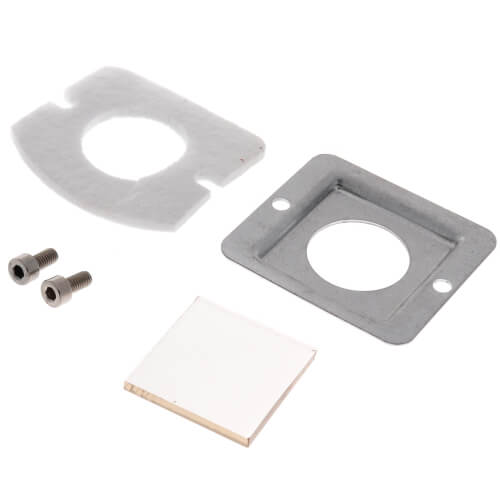

Weil McLain 383-500-020 - 383-500-020 Inspection Glass Kit

Visual verification of the combustion process is essential for maintaining efficient boiler operation and safety. The 383-500-020 inspection glass kit by Weil-McLain provides a clear, high-temperature resistant optical port that allows technicians to inspect flame patterns and igniter performance. By installing this 383-500-020 assembly, you ensure that viewing ports remain unobstructed and clear, supporting accurate diagnostics during routine maintenance.

This component is engineered to function as a pressure-tight barrier between the external environment and the combustion zone. It prevents air infiltration, which could otherwise disrupt the precise fuel-to-air ratio required for clean, efficient ignition and heating performance.

Key System Performance Baselines:

• Optical Integrity: High-temperature glass provides clear, distortion-free viewing of internal combustion.
• Pressure-Tight Seal: Maintains the required chamber environment by preventing air leakage.
• Combustion Monitoring: Enables rapid verification of pilot and main burner flame status.

⚠️ Application Profile: Use this kit for service and replacement on compatible Weil-McLain boilers requiring a visual flame inspection port or where existing sight glass has become clouded, cracked, or damaged.

📋 Procurement & Shipping Notice

• LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
• Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?

👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
