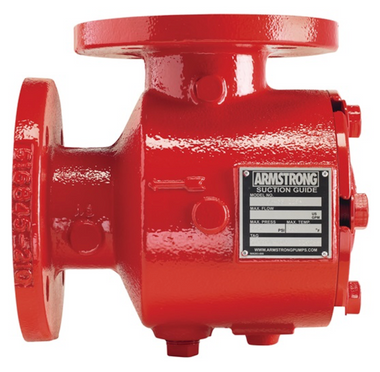

Armstrong SG-33 - SG-33 Suction Diffuser, 3 x 3

Optimizing pump life starts with the installation of a high-quality suction diffuser on the inlet side of your hydronic system. The SG-33 Armstrong Suction Diffuser, part number 516860-019, is engineered to safeguard your pump by filtering out harmful debris and foreign matter while conditioning the fluid flow to reduce turbulence.

This component functions by utilizing an internal guide vane assembly that directs incoming fluid into a smooth flow pattern before it reaches the pump impeller. By straightening the flow profile, this diffuser significantly reduces the risk of cavitation and ensures the pump operates at its peak hydraulic efficiency, ultimately lowering energy consumption and preventing mechanical wear.

Key System Performance Baselines:

• Debris Protection: Effectively catches internal system particulates to prevent impeller damage.
• Flow Conditioning: Directs fluid into the pump suction with minimal turbulence to ensure stable performance.
• Space Efficiency: Combines the functions of an elbow, strainer, and entry pipe into a compact, space-saving design.
• Durability: Built to withstand rigorous industrial and commercial hydronic system pressures.

⚠️ Application Profile: Recommended for commercial HVAC chilled and hot water systems, industrial fluid processing, and primary-secondary pumping loops where pump protection is critical to uptime.

📋 Procurement & Shipping Notice

• LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
• Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?

👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
