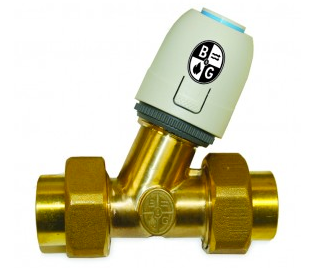

Bell & Gossett 109508 1" NPT Zone Valve SZV-505N-4WE Snap Control
Bell & Gossett 109508 1" NPT Zone Valve SZV-505N-4WE Snap Control
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 109508 |
| Model Designation | SZV-505N-4WE |
| Connection Size | 1" NPT |
| Body Construction | Cast iron |
A snap‑control zone valve regulates water flow to individual heating zones, delivering precise temperature management and energy efficiency. The 109508 Bell & Gossett SZV-505N-4WE model features a 1" NPT connection for straightforward installation.
When the snap‑control motor receives a signal, the valve’s internal piston quickly shifts, opening or closing the flow path without the need for continuous power, ensuring rapid response and reduced wear.
Key System Performance Baselines:
- Flow Control Accuracy: Maintains ±5% flow variance across the operating pressure range.
- Maximum Pressure Rating: Designed for up to 175 psi system pressure.
- Actuation Speed: Snap‑action motor provides full opening or closing in less than 2 seconds.
- Temperature Range: Operates reliably from -20 °F to 250 °F.
⚠️ Application Profile: Ideal for commercial HVAC, multi‑zone hydronic heating, boiler feedwater circuits, and retrofits in existing plumbing systems.
