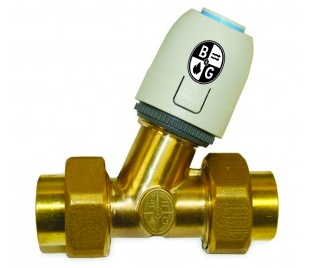

Bell & Gossett 109514 1" SWT Snap Zone Valve Body SZV-100S-000
Bell & Gossett 109514 1" SWT Snap Zone Valve Body SZV-100S-000
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 109514 |
| Model Designation | SZV-100S-000 |
| Connection Size | 1" |
Designed to provide precise flow control and reliable leak‑free operation in 1‑inch steam‑water‑together (SWT) systems, the Bell & Gossett Snap‑Zone valve body ensures quick maintenance and consistent performance. This component, part number 109514 (model SZV-100S-000), replaces the original body and integrates seamlessly with existing pipework.
The valve body features a snap‑in zone that isolates the valve internals from the pipeline, allowing technicians to disassemble and service the valve without depressurizing the entire system. Its robust construction and precision‑machined ports maintain accurate pressure differentials while minimizing turbulence.
Key System Performance Baselines:
- Flow Accuracy: Maintains rated flow rates within ±5% of design specifications.
- Leak Protection: Snap‑in design prevents system leaks during maintenance.
- Installation Speed: Reduces field installation time by up to 30% compared with conventional bodies.
- Durability: Engineered for 100,000+ operating cycles without degradation.
⚠️ Application Profile: Ideal for commercial HVAC chillers, hydronic heating loops, boiler feed systems, and mixed‑media steam‑water pipelines requiring rapid serviceability.
