Order the Parker 12-1/2 F5OG-SS Fitting from National Boiler Supply. Call our order desk at 850-565-3492 for a formal quote or a part number cross-check.
Product Overview

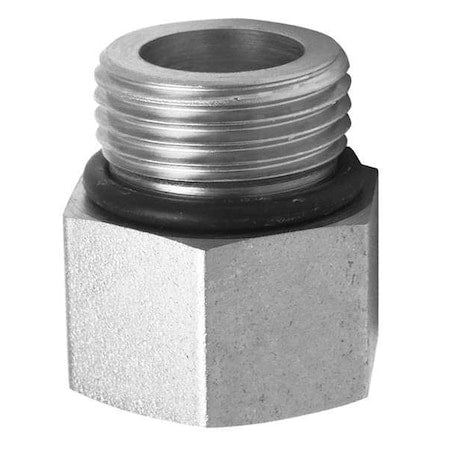

The PARKER - 12-1/2 F5OG-SS is a stainless steel pipe adapter designed to connect two components with different connection types and sizes. It features a male SAE-ORB connection on one end sized 1-1/16"-12 and a female NPT connection on the 1/2" end, providing a transition point compatible with hydraulic fluid systems within the specified pressure and temperature ranges. Constructed from 316 stainless steel, this adapter offers corrosion resistance and is suitable for applications within a temperature range: 30°F to 250°F and a maximum operating pressure of 6,000 psi. Nitrile seal included; ensure proper installation for leak prevention. It conforms to SAE J1926-1 and SAE J514 standards.
Features
- Material: 316 Stainless Steel construction.
- Connection Types: Male SAE-ORB (1-1/16"-12) x Female NPT (1/2").
- Application: Rated for hydraulic fluid service.
- Temperature Range: 30°F to 250°F.
- Maximum Operating Pressure: 6,000 psi.
- Seal Included: Nitrile material seal supplied.
- Hex Size: 1-1/4" wrenching flats for installation.
- Overall Length: 1 3/8 in.
Technical Specifications
| Brand | Parker |
|---|---|
| Manufacturer Part Number | 12-1/2 F5OG-SS |
OEM Part Verification: Confirm Parker part number 12-1/2 F5OG-SS against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
Related PARKER Components & Replacement Parts
- Parker 12-3/8 F5OG-SS – Pipe Adapter, 316 Stainless Steel, 3/4 in Male SAE-ORB x 3/8 in Female NPT, 6,000 PSI – OEM Part # 12-3/8 F5OG-SS
- Parker 10-1/2 F5OG-SS – 1-1/16-12 x 3/8" SAE-ORB x FNPT 316 SS Pipe Adapter – OEM Part # 10-1/2 F5OG-SS
- Parker 16-1 F5OG-SS – 1-5/16-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter – OEM Part # 16-1 F5OG-SS
- Parker 8-3/8 F5OG-SS – Pipe Adapter, 3/4 in Male SAE-ORB x 3/8 in Female NPT, 316 Stainless Steel, 6000 PSI Max Pressure – OEM Part # 8-3/8 F5OG-SS
- Parker 16-1/2 F5OG-SS – Stainless Steel, Straight, 1"x1/2"NPT – OEM Part # 16-1/2 F5OG-SS
Need help confirming a part number or cross-reference? Call our order desk at 850-565-3492.
