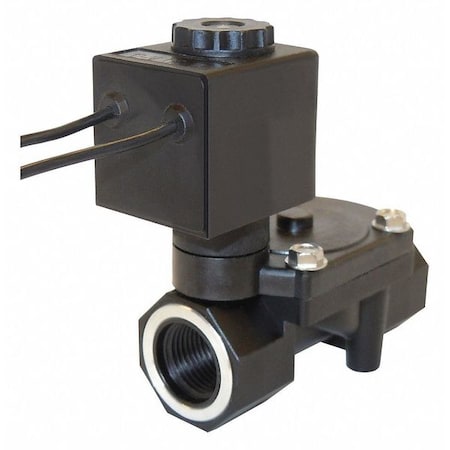

Spartan Scientific 3585-020-9237B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, Remote Pilot, Buna N

The SPARTAN SCIENTIFIC 3585-020-9237B is a 2-way, 2-position solenoid valve with a normally closed starting configuration. It operates using an internal pilot actuator and a diaphragm valve design in a straight body style. Media compatibility: air and water; controlled remotely via an energized coil. Operating ambient temperature range: 50°F to 122°F. Maximum fluid temperature: 194°F. Operating differential pressure range: 10 psi to 150 psi. This valve features NPT inlet and outlet connections sized at 1/2 inch nominal pipe size.

Key Features:

• - Body Material: Glass filled nylon
• - Seal Material: Buna N
• - Coil enclosure rating: watertight and dust-tight per IP65
• - Electrical Connections: Wire leads
• - Coil Insulation Class: F
• - Voltage: 120V AC at 60 Hz frequency
• - Wattage: 6.5 W
• - Environmental Rating: Outdoor
• - IP Rating: IP65
• - NEMA Enclosure Rating: 4
• - Orifice Diameter: 1/2 inch
• - Overall Dimensions: Height 3-3/16 in, Length 2-23/32 in, Width 1-1/2 in
• - Includes Coil and Seal
• - Standards: CE certified
