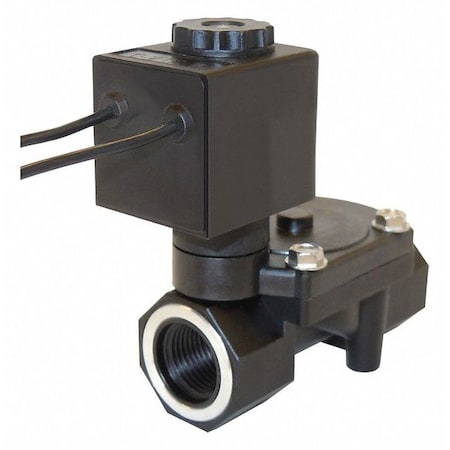

Spartan Scientific 3585-020-9233B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24 V DC, Remote Pilot, Buna N

The SPARTAN SCIENTIFIC 3585-020-9233B is a normally closed, 2-way solenoid valve featuring a diaphragm valve design and pilot-operated actuation with an internal pilot actuator type. Constructed with a glass filled nylon body, it provides control over the flow of air and water through a 1/2 inch orifice and nominal pipe size. The valve includes an integrated coil and seal components, allowing for operation in ambient temperatures ranging from 50°F to 122°F and fluids up to 194°F. It is designed with a remote pilot valve type for automated flow control in pneumatic and hydraulic systems.

Key Features:

• - Valve Type: Remote Pilot, Diaphragm
• - Valve Configuration: 2-Way, 2-Position, Normally Closed
• - Body Material: Glass Filled Nylon
• - Connections: Inlet and Outlet NPT threaded
• - Orifice Diameter: 1/2 inch
• - Operating Voltage: 24 V DC with 6.5 W coil wattage
• - Electrical Connections: Wire Leads
• - Coil Enclosure: Watertight, Dust Tight, Class F insulation
• - Environmental Rating: Outdoor, NEMA 4, IP65
• - Operating Pressure Differential: 10 psi minimum to 150 psi maximum for air, water, and light oil
• - Media: Air, Water
• - Seal Material: Buna N
• - Overall Dimensions: Length 2-23/32 in, Height 3-3/16 in, Width 1-1/2 in
• - Standards: CE Certified
