Taco ZVC404-EXP 4-Zone Valve Control Matrix
Taco ZVC404-EXP 4-Zone Valve Control Matrix
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Manufacturer Part Number (MPN) | ZVC404-EXP-4 |
| Total Number of Zones | 4 Zones with dedicated Priority Switch |
| Electrical Input / Output Ratings | 120 VAC Input, 24 VAC Class 2 Outputs (40 VA per Transformer / 24 VA max per Zone) |
| Pump & Relay Contact Ratings | Pump End Switches rated 1/6 HP (5A @ 120 VAC); Main End Switches rated 24 VAC (1A) |
| Enclosure Dimensions | 12-1/4" Width x 8" Height x 3" Depth (Type 1 Sturdy Steel Enclosure) |

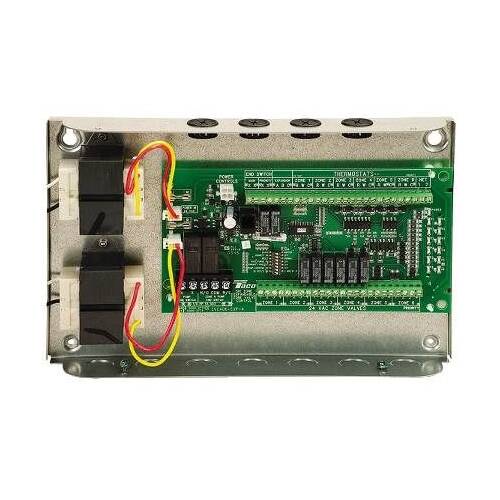

The Taco ZVC404-EXP-4 Expandable 4-Zone Valve Control Matrix (ZVC404-EXP-4) is a contractor-grade hydronic system control module engineered to deliver professional multi-zone zoning efficiency and diagnostic clarity. Housed in a durable Type 1 compact enclosure, this multi-zone panel simplifies the complex wiring networks typically associated with 2-wire, 3-wire, or 4-wire zone valves. Its modular, intuitive circuit board layout eliminates disorganized line configurations while optimizing overall hydronic operational safety.
Equipped with an advanced command architecture, the ZVC404-EXP-4 features switchable priority settings, built-in priority protection, and automated post-purge/pump-exercise timers to constantly maintain systemic fluid performance. Exterior LED diagnostic indicator windows provide instant optical troubleshooting for thermostats, zone valves, and internal power delivery. Designed for scalable configurations, this expandable multi-zone control platform seamlessly interfaces with additional -EXP modules via a master/slave daisy chain layout, allowing your building system infrastructure to seamlessly scale up to 120 total heating zones with absolute code-compliant reliability.
