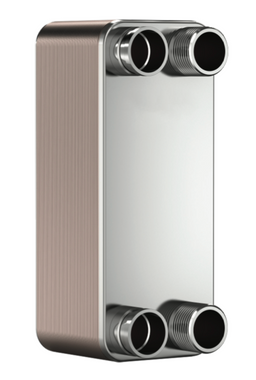

Taco TB12MT-20 Brazed Plate Heat Exchanger 1-1/4" MPT 5” x 12"
Taco TB12MT-20 Brazed Plate Heat Exchanger 1-1/4" MPT 5” x 12"
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | TB12MT-20 |
| Connection Size | 1-1/4" MPT |
| Dimensions | 5" x 12" |
| Body Construction | Copper Brazed 316L Stainless Steel |
Maximize thermal transfer efficiency in your hydronic system with the Taco TB12MT-20 brazed plate heat exchanger. This compact, high-performance unit is engineered for seamless fluid-to-fluid heat exchange in residential and commercial applications, featuring a robust TB12MT-20 design that ensures consistent temperature regulation and long-term durability.
The unit utilizes a series of corrugated 316L stainless steel plates, vacuum-brazed together to create high-turbulence flow paths. This design promotes self-cleaning action and maximizes the heat transfer surface area, allowing for exceptional efficiency within a remarkably small footprint compared to traditional shell and tube alternatives.
Key System Performance Baselines:
- Superior Material Integrity: Constructed with high-grade 316L stainless steel for maximum corrosion resistance.
- Thermal Efficiency: Engineered for high-turbulence flow to optimize heat transfer rates.
- Compact Footprint: Space-saving 5” x 12” frame ideal for tight mechanical room installations.
- Reliable Connectivity: Standard 1-1/4" MPT connections for simplified integration into existing piping.
⚠️ Application Profile: Ideal for hydronic radiant heating, domestic hot water production, snow melt systems, and solar thermal integration.
