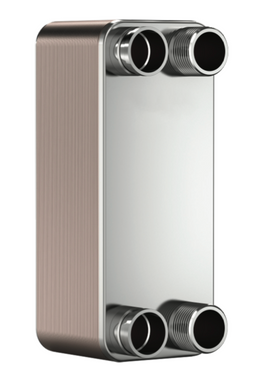

Taco TB12THx40 Brazed Plate Heat Exchanger 1-1/4 NPT
Taco TB12THx40 Brazed Plate Heat Exchanger 1-1/4 NPT
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | TB12THx40 |
| Model Designation | TB Series |
| Connection Size | 1-1/4 NPT |
| Body Construction | Copper-brazed stainless steel plates |
Optimized for superior thermal efficiency in hydronic systems, the TB12THx40 provides a compact, high-performance solution for heat transfer requirements. This Taco brazed plate heat exchanger, model TB12THx40, serves as a streamlined alternative to bulky shell and tube units, ensuring reliable performance in demanding fluid management applications.
The unit is constructed with copper-brazed stainless steel plates, which create a turbulent flow pattern that promotes rapid heat exchange while minimizing fouling. This sophisticated design maximizes the surface area contact between fluids, resulting in a significantly smaller footprint without sacrificing capacity or durability.
Key System Performance Baselines:
- Enhanced Efficiency: Utilizes high-turbulence plate geometry to optimize heat transfer rates.
- Space-Saving Design: Significantly more compact than traditional shell and tube exchangers.
- Low Fouling Surface: Stainless steel construction resists mineral buildup for long-term operational consistency.
- Robust Construction: Precision-brazed plates provide structural integrity under varying pressures.
⚠️ Application Profile: Perfectly suited for domestic hot water production, in-floor radiant heating circuits, and residential snow-melt systems.
