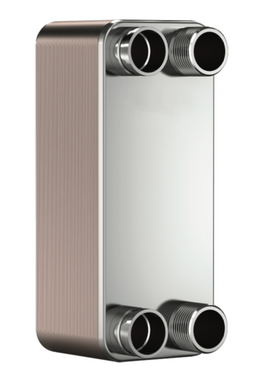

Taco TB12THx50 Brazed Plate Heat Exchanger 1-1/4 NPT
Taco TB12THx50 Brazed Plate Heat Exchanger 1-1/4 NPT
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number | TB12THx50 |
| Model Designation | TB12THx50 |
| Connection Size | 1-1/4 NPT |
| Body Construction | Stainless Steel with Copper Brazing |
Experience superior thermal exchange efficiency with the Taco TB12THx50 brazed plate heat exchanger, engineered to provide a compact and high-performance solution for residential and commercial hydronic systems. This model, identified as part number TB12THx50, serves as a versatile alternative to bulky shell-and-tube or plate-and-frame units, ensuring reliable temperature management in various fluid-to-fluid applications.
The unit utilizes precision-engineered stainless steel plates fused together through a copper brazing process. This advanced construction creates a high-turbulence flow pattern that promotes rapid, effective heat transfer while simultaneously reducing the buildup of minerals and contaminants on the plates, which keeps maintenance requirements low and operational longevity high.
Key System Performance Baselines:
- Durable Construction: High-grade stainless steel plates provide excellent corrosion resistance.
- High Efficiency: Compact design maximizes surface area for rapid heat transfer.
- Low Fouling: Turbulent flow patterns minimize internal scaling and sediment buildup.
- Versatile Application: Engineered for seamless integration into modern hydronic circuits.
⚠️ Application Profile: This unit is specifically designed for domestic hot water production, in-floor radiant heating systems, and snow-melt loops where space efficiency and consistent thermal output are critical.
